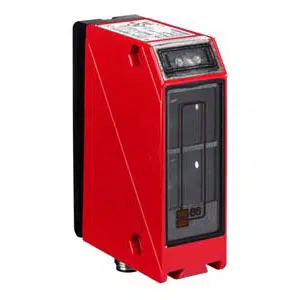

Leuze PRK 96M/P-1838-41 | 50080760
Technical Specifications of Leuze PRK 96M/P-1838-41 50080760:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0 ... 7 m |
| Light Source | LED, Red |
Leuze Detection of stretch-wrapped objects retro-reflective sensor PRK 96M/P-1838-41 - 50080760 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of highly transparent bottles Detection of highly transparent films and glass panes Detection of stretch-wrapped objects |
| Special version | - |
| Sensing Distance | 0 ... 7 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | - |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switchin |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 1,000 Hz |
| Response time | - |
| Function | - |
| Type of connection | Connector |
| Thread size | M12 |
| Type | - |
| Material | Metal |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Housing material | Metal |
| Metal housing | Zinc |
| Lens cover material | Glass |
| Housing color | - |
| Type of display | LED |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -40 ... 55 °C |
| Ambient temperature, storage | - |
| Degree of protection | IP 67 |
Call us for Leuze Detection of stretch-wrapped objects retro-reflective sensor PRK 96M/P-1838-41 part no: 50080760 at the best rates. Technical Attributes of PRK 96M/P-1838-41, 50080760 are Cubic, Design Reflection principle, 30 mm x 90 mm x 70 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switchin Switching principle, 10 ... 30 V, DC Supply voltage UB, 0 ... 7 m Sensing Distance, 4 -pin No. of pins, Metal Housing material, IP 67 degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze Detection of stretch-wrapped objects retro-reflective sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
