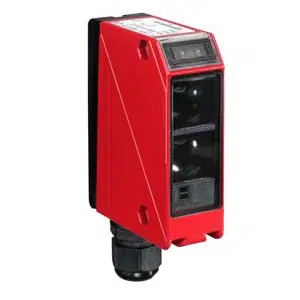

Leuze PRK 96M/R-1858-25 | 50029881
Technical Specifications of Leuze PRK 96M/R-1858-25 50029881:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0 ... 7 m |
| Light Source | LED, Red |
Leuze 30mm x 90mm x 70mm Dimension retro-reflective sensor PRK 96M/R-1858-25 - 50029881 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of highly transparent bottles Detection of highly transparent films and glass panes Detection of stretch-wrapped objects |
| Special version | Time function |
| Sensing Distance | 0 ... 7 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | - |
| Type of light spot geometry | - |
| Supply voltage UB | 20 ... 230 V, AC/DC |
| Switching Output 1 | Relay, NC contact/NO contact |
| Switching principle | Light switchin |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 20 Hz |
| Response time | - |
| Function | - |
| Type of connection | Terminal |
| Thread size | - |
| Type | - |
| Material | - |
| No. of pins | 5 -pin |
| Encoding | - |
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Housing material | Metal |
| Metal housing | Zinc |
| Lens cover material | Glass |
| Housing color | - |
| Type of display | LED |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -40 ... 55 °C |
| Ambient temperature, storage | - |
| Degree of protection | IP 67 |
Obtain a Quote for Leuze 30mm x 90mm x 70mm Dimension retro-reflective sensor PRK 96M/R-1858-25 part no: 50029881 at economical prices. Specifications Overview for PRK 96M/R-1858-25, 50029881 reveals Cubic, Design Reflection principle, 30 mm x 90 mm x 70 mm Dimension, LED, Red Light source, Relay, NC contact/NO contact Switching Outputs 1, Light switchin Switching principle, 20 ... 230 V, AC/DC Supply voltage UB, 0 ... 7 m Sensing Distance, 5 -pin No. of pins, Metal Housing material, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze 30mm x 90mm x 70mm Dimension retro-reflective sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
