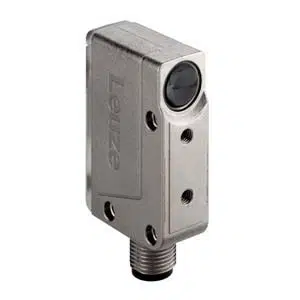

Leuze PRK18B.T2/PX-M12 | 50117361
Technical Specifications of Leuze PRK18B.T2/PX-M12 50117361:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0 ... 4 m |
| Light Source | LED, Red |
Leuze Autocollimation Special retro-reflective sensor PRK18B.T2/PX-M12 - 50117361 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of highly transparent bottles Detection of highly transparent films and glass panes |
| Special version | Autocollimation |
| Sensing Distance | 0 ... 4 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 1,500 Hz |
| Response time | 0.333 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 15 mm x 47 mm x 32.5 mm |
| Housing material | Metal |
| Metal housing | Diecast zinc |
| Lens cover material | Glass |
| Housing color | Silver |
| Type of display | LED |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 / IP 69K |
Ask for the Pricing of Leuze Autocollimation Special retro-reflective sensor PRK18B.T2/PX-M12 part no: 50117361 at unbeatable prices. Detailed Specifications of PRK18B.T2/PX-M12, 50117361 feature Cubic, Design Reflection principle, 15 mm x 47 mm x 32.5 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Dark switching Switching principle, 10 ... 30 V, DC Supply voltage UB, 0 ... 4 m Sensing Distance, 4 -pin No. of pins, Metal Housing material, IP 67 / IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze Autocollimation Special retro-reflective sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
