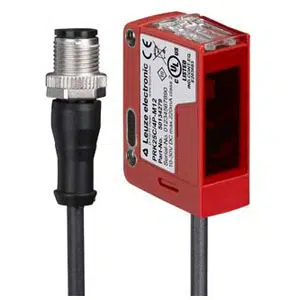

Leuze PRK25C.A/2N-200-M12 | 50134278
Technical Specifications of Leuze PRK25C.A/2N-200-M12 50134278:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0 ... 5 m, With reflector TK(S) 100x100 |
| Light Source | LED, Red |
Leuze protective circuit and short circuit protected retro-reflective sensor PRK25C.A/2N-200-M12 - 50134278 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | Autocollimation |
| Sensing Distance | 0 ... 5 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 640 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, NPN |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, NPN |
| Switching principle | Dark switching |
| Switching frequency | 1,500 Hz |
| Response time | 0.33 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | - |
| Wire cross section | 0.2 mm² |
| Thread size | M12 |
| Type | Male |
| Material | PUR |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic |
| Stainless steel housing | ABS |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 / IP 69K |
Reach Us by Email for Leuze protective circuit and short circuit protected retro-reflective sensor PRK25C.A/2N-200-M12 part no: 50134278 at attractive prices. Engineering Specifications of PRK25C.A/2N-200-M12, 50134278 are Cubic, Design Reflection principle, 15 mm x 42.7 mm x 30 mm Dimension, LED, Red Light source, Transistor, NPN Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0 ... 5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 / IP 69K degree of protection. Match Your Needs with a Quote for your requirement of Leuze protective circuit and short circuit protected retro-reflective sensor. Our pricing and support are unrivaled, especially when compared to other Dealers.
