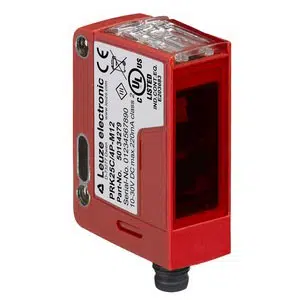

Leuze PRK25C.A/4P-M8 | 50134273
Technical Specifications of Leuze PRK25C.A/4P-M8 50134273:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0 ... 5 m, With reflector TK(S) 100x100 |
| Light Source | LED, Red |
Leuze m8 connector, IP67, IP69K protection Polarized retro-reflective sensor PRK25C.A/4P-M8 - 50134273 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | Autocollimation |
| Sensing Distance | 0 ... 5 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 640 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 1,500 Hz |
| Response time | 0.33 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Metal |
| No. of pins | 4 -pin |
| Encoding | - |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic |
| Metal housing | ABS |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 IP 69K |
Give Us a Call for Leuze m8 connector, IP67, IP69K protection Polarized retro-reflective sensor PRK25C.A/4P-M8 part no: 50134273 at the lowest pricing. In-depth Technical Analysis of PRK25C.A/4P-M8, 50134273 feature Cubic, Design Reflection principle, 15 mm x 42.7 mm x 30 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0 ... 5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 IP 69K degree of protection. Elevate Your Project with a Quote for your requirement of Leuze m8 connector, IP67, IP69K protection Polarized retro-reflective sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
