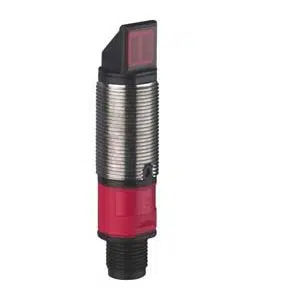

Leuze PRK328.W3/2N-M12 | 50122691
Technical Specifications of Leuze PRK328.W3/2N-M12 50122691:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
| Light Source | LED, Red |
Leuze V2A Stainless steel Housing retro-reflective photoelectric sensor PRK328.W3/2N-M12 - 50122691 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | 90° - angular optics |
| Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 18 mm x 61 mm |
| Housing material | Plastic Stainless steel |
| Metal housing | ABS |
| Lens cover material | Plastic |
| Housing color | Black Silver |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
Ask for the Pricing of Leuze V2A Stainless steel Housing retro-reflective photoelectric sensor PRK328.W3/2N-M12 part no: 50122691 at unbeatable prices. Detailed Specifications of PRK328.W3/2N-M12, 50122691 feature Cubic, Design Reflection principle, 18 mm x 61 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 4.5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic
Stainless steel Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze V2A Stainless steel Housing retro-reflective photoelectric sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
