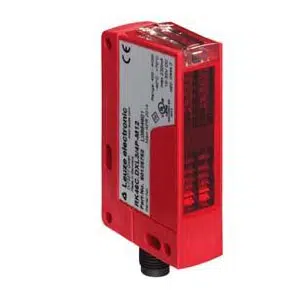

Leuze PRK46C/4W-M12 | 50127021
Technical Specifications of Leuze PRK46C/4W-M12 50127021:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0.1 ... 24 m, With reflector TK(S) 100x100 |
| Light Source | LED, Red |
Leuze warning output and 0.1–30 m operating range limit retro-reflective sensor PRK46C/4W-M12 - 50127021 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | Warning output |
| Sensing Distance | 0.1 ... 24 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 630 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Metal housing | PC-PBT |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 / IP 69K |
Call us for Leuze warning output and 0.1–30 m operating range limit retro-reflective sensor PRK46C/4W-M12 part no: 50127021 at the best rates. Technical Attributes of PRK46C/4W-M12, 50127021 are Cubic, Design Reflection principle, 20.5 mm x 76.3 mm x 44 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.1 ... 24 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 / IP 69K degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze warning output and 0.1–30 m operating range limit retro-reflective sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
