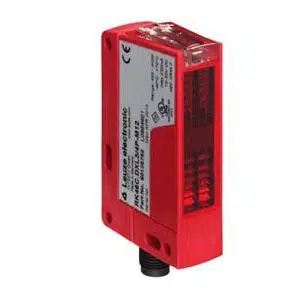

Leuze PRK46C/LP-M12 | 50136904
Technical Specifications of Leuze PRK46C/LP-M12 50136904:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0.1 ... 24 m, With reflector TK(S) 100x100 |
| Light Source | LED, Red |
Leuze Male, 4-pin, M12 connector retro-reflective photoelectric sensor PRK46C/LP-M12 - 50136904 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.1 ... 24 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Metal housing | PC-PBT |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 / IP 69K |
IndMALL Automation Dealing offers Leuze Male, 4-pin, M12 connector retro-reflective photoelectric sensor PRK46C/LP-M12 part no: 50136904 at attractive prices. Key Technical Features of PRK46C/LP-M12, 50136904 are Cubic, Design Reflection principle, 20.5 mm x 76.3 mm x 44 mm Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs 1, IO-Link / light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.1 ... 24 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 / IP 69K degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze Male, 4-pin, M12 connector retro-reflective photoelectric sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
