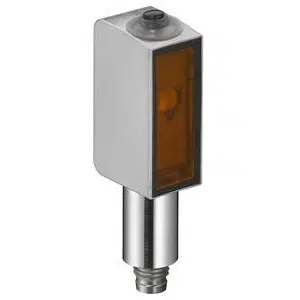

Leuze PRK53CL1.A3/LG-M8 | 50148162
Technical Specifications of Leuze PRK53CL1.A3/LG-M8 50148162:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0 ... 2 m, With reflector MTKS 50x50.1 |
| Light Source | Laser, Red |
Leuze 0–2 m operating range and red laser light source retro-reflective sensor PRK53CL1.A3/LG-M8 - 50148162 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | Autocollimation HYGIENE design |
| Sensing Distance | 0 ... 2 m, With reflector MTKS 50x50.1 |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 650 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Dark switching (PNP)/light switching (NPN) |
| Switching frequency | 3,000 Hz |
| Response time | 0.17 ms |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Stainless steel |
| No. of pins | 4 -pin |
| Encoding | - |
| Dimension (W x H x L) | 14 mm x 35.4 mm x 20.4 mm |
| Housing material | Stainless steel |
| Metal housing | AISI 316L, DIN X2CrNiMo17132, W.No1.4404 |
| Lens cover material | Plastic (PMMA+) with scratch-resistant Indium protective coating |
| Housing color | Silver |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 70 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 / IP 68 / IP 69K |
Mail Us for your needs in Leuze 0–2 m operating range and red laser light source retro-reflective sensor PRK53CL1.A3/LG-M8 part no: 50148162 with budget-friendly prices. The Main Technical Parameters of PRK53CL1.A3/LG-M8, 50148162 include Cubic, Design Reflection principle, 14 mm x 35.4 mm x 20.4 mm Dimension, Laser, Red Light source, Transistor, Push-pull Switching Outputs 1, IO-Link / light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0 ... 2 m, With reflector MTKS 50x50.1 Sensing Distance, 4 -pin No. of pins, Stainless steel Housing material, IP 67 / IP 68 / IP 69K degree of protection. Customize Your Experience with a Quote for your requirement of Leuze 0–2 m operating range and red laser light source retro-reflective sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
