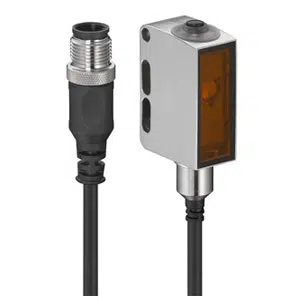

Leuze PRK55C.A3/LG-200-M12 | 50148189
Technical Specifications of Leuze PRK55C.A3/LG-200-M12 50148189:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0 ... 4 m, With reflector TK(S) 100x100 |
| Light Source | LED, Red |
Leuze 14 mm x 35.4 mm x 25 mm Dimension retro-reflective photoelectric sensors PRK55C.A3/LG-200-M12 - 50148189 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | Autocollimation Wash-Down design |
| Sensing Distance | 0 ... 4 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Dark switching (PNP)/light switching (NPN) |
| Switching frequency | 1,500 Hz |
| Response time | 0.33 ms |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.2 mm² |
| Thread size | M12 |
| Type | Male |
| Material | Stainless steel |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 14 mm x 35.4 mm x 25 mm |
| Housing material | Stainless steel |
| Stainless steel housing | AISI 316L, DIN X2CrNiMo17132, W.No1.4404 |
| Lens cover material | Plastic (PMMA+) with scratch-resistant Indium protective coating |
| Housing color | Silver |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 70 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67/IP 68/IP 69K |
Give Us a Call for Leuze 14 mm x 35.4 mm x 25 mm Dimension retro-reflective photoelectric sensors PRK55C.A3/LG-200-M12 part no: 50148189 at the lowest pricing. In-depth Technical Analysis of PRK55C.A3/LG-200-M12, 50148189 feature Cubic, Design Reflection principle, 14 mm x 35.4 mm x 25 mm Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs 1, IO-Link / light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0 ... 4 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Stainless steel Housing material, IP 67/IP 68/IP 69K degree of protection. Elevate Your Project with a Quote for your requirement of Leuze 14 mm x 35.4 mm x 25 mm Dimension retro-reflective photoelectric sensors. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
