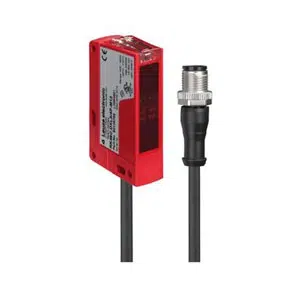

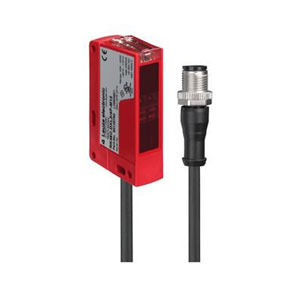

Leuze RK46C.DXL3/PX-200-M12 | 50134572
Technical Specifications of Leuze RK46C.DXL3/PX-200-M12 50134572:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0.4 ... 4 m, With reflector TK(S) 100x100 |
| Light Source | LED, Red |
Leuze Switching current, max 100 mA retro-reflective photoelectric sensor RK46C.DXL3/PX-200-M12 - 50134572 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of irregular objects on conveyor belt Detection of objects with openings Detection of stretch-wrapped objects |
| Special version | AS-Interface, connection via coupling module Extra long light spot (XL) |
| Sensing Distance | 0.4 ... 4 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 250 Hz |
| Response time | 2 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | - |
| Wire cross section | 0.2 mm² |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Stainless steel housing | PC-PBT |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 / IP 69K |
IndMALL Automation Dealing offers Leuze Switching current, max 100 mA retro-reflective photoelectric sensor RK46C.DXL3/PX-200-M12 part no: 50134572 at attractive prices. Key Technical Features of RK46C.DXL3/PX-200-M12, 50134572 are Cubic, Design Reflection principle, 20.5 mm x 76.3 mm x 44 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Dark switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.4 ... 4 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 / IP 69K degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze Switching current, max 100 mA retro-reflective photoelectric sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
