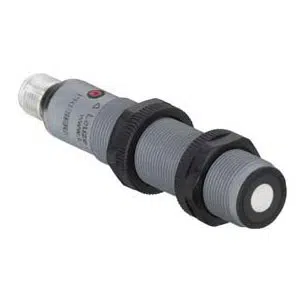

Leuze RKU318-400.3/2X-M12 | 50136095
Technical Specifications of RKU318-400.3/2X-M12 50136095:
| Spec | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M18 x 1 mm |
| Dimensions | 18 mm x 91.6 mm |
| Operating Range | 0 ... 0.4 m |
Leuze Cylindrical Reflection Ultrasonic Sensor RKU318-400.3/2X-M12, 50136095 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M18 x 1 mm |
| Dimension | 18 mm x 91.6 mm |
| Operating range | 0 ... 0.4 m |
| Operating principle | Reflection principle |
| Ultrasonic frequency | 300 kHz |
| Opening angle | 8 ° |
| Adjustment range | - |
| Resolution | < 2 mm |
| Supply voltage UB | 10 ... 30 V, DC |
| Number of Connections | - |
| Switching voltage | - |
| Switching output 1 | Transistor, NPN |
| Switching frequency | 8 Hz |
| Interface Type | - |
| Response time | 62 ms |
| Connection 1 Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| No. of Pin | 4 -pin |
| Housing material | Plastic |
| Ambient temperature, operation | -20 ... 70 °C |
| Ambient temperature, storage | -20 ... 70 °C |
| Degree of protection | IP 67 |
IndMALL Offers Leuze Cylindrical Reflection Ultrasonic Sensor RKU318-400.3/2X-M12 50136095 at economical Choices. Product Tech Specs of RKU318-400.3/2X-M12 include 18 mm x 91.6 mm Dimensions, 0 ... 0.4 m Operating Range, 300 kHz Ultrasonic Frequency, 8 ° Opening Angle, Transistor, NPN Switching Output - Interface Type, Connector, M18 x 1 mm Thread size, 4 -pin, Plastic Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze Cylindrical Reflection Ultrasonic Sensor. Trust in our superior pricing and more dedicated support over other Distributors.
