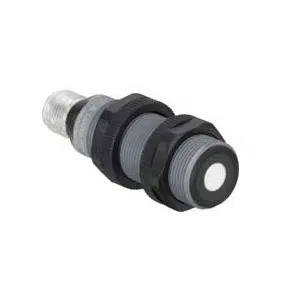

Leuze RKU318-800/2T-M12 | 50136081
Technical Specifications of RKU318-800/2T-M12 50136081:
| Spec | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M18 x 1 mm |
| Dimensions | 18 mm x 60.3 mm |
| Operating Range | 0 ... 0.8 m |
Leuze 0.8m Operating Range Ultrasonic Sensors RKU318-800/2T-M12, 50136081 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M18 x 1 mm |
| Dimension | 18 mm x 60.3 mm |
| Operating range | 0 ... 0.8 m |
| Operating principle | Reflection principle |
| Ultrasonic frequency | 230 kHz |
| Opening angle | 8 ° |
| Adjustment range | - |
| Resolution | < 2 mm |
| Supply voltage UB | 10 ... 30 V, DC |
| Number of Connections | - |
| Switching voltage | - |
| Switching output 1 | Transistor, NPN |
| Switching frequency | 5 Hz |
| Interface Type | - |
| Response time | 100ms |
| Connection 1 Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| No. of Pin | 4 -pin |
| Housing material | Plastic |
| Ambient temperature, operation | -20 ... 70 °C |
| Ambient temperature, storage | -20 ... 70 °C |
| Degree of protection | IP 67 |
Talk to Our Engineer for Leuze 0.8m Operating Range Ultrasonic Sensors RKU318-800/2T-M12 50136081 with exclusive offers. Core System Specifications of RKU318-800/2T-M12 are 18 mm x 60.3 mm Dimensions, 0 ... 0.8 m Operating Range, 230 kHz Ultrasonic Frequency, 8 ° Opening Angle, Transistor, NPN Switching Output - Interface Type, Connector, M18 x 1 mm Thread size, 4 -pin, Plastic Housing material, IP 67 degree of protection. Don't Miss Out on a Quote for your requirement of Leuze 0.8m Operating Range Ultrasonic Sensors.
