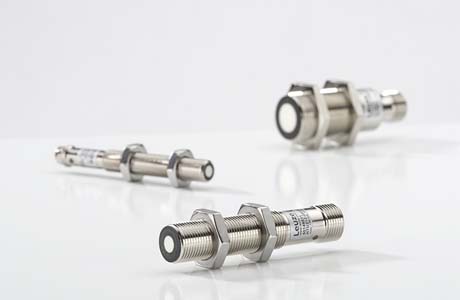

Leuze Ultrasonic Sensor: Cubic & Cylindrical
IndMALL Automation offers Leuze Ultrasonic Sensors, ideal for challenging situations where standard sensors struggle. They excel in detecting various objects, whether transparent, dark, or reflective, and perform well in environments with dust or moisture. Leuze Ultrasonic Fork Sensor provides two designs: cubic sensors, which are great for objects with reflective surfaces, and cylindrical sensors, tailored for small or hard-to-reach items. These sensors are straightforward to use and adaptable for multiple applications in automation. Explore the dependable and efficient Leuze Ultrasonic Sensors for your automation needs.

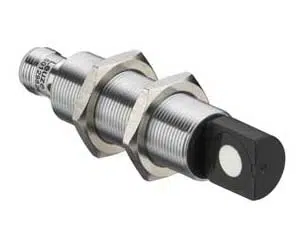

HTU418B-1000.W/4TX-M12 | 50124270
- Part no.: 50124270
- Series: 418B
- Design: Cylindrical
- Operating range: 0.15 … 1 m
- Operating Principle: Diffuse reflection
- Switching Principle: NO (normally open)

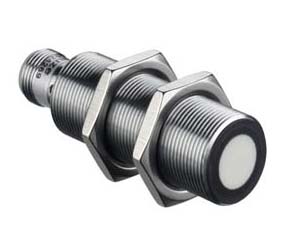

HTU418B-1300/4T4-M12 | 50124272
- Part No. : 50124272
- Series: 418B
- Design: Cylindrical
- Operating range: 0.15 … 1 m
- Operating Principle: Diffuse reflection
- Switching Principle: NO (normally open)

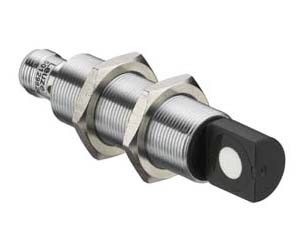

HTU418B-400/4T4-M12 | 50124268
- Part No. : 50124268
- Series: 418B
- Design: Cylindrical
- Operating range: 0.025 … 0.4 m
- Operating Principle: Diffuse reflection
- Switching Principle: NO (normally open)

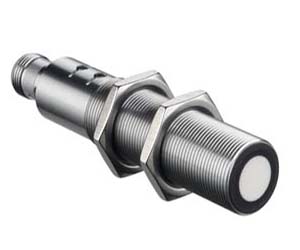

HTU418B-400.X3/LT4-M12 | 50124267
- Part no.: 50124267
- Series: 418B
- Design: Cylindrical
- Operating range: 0.025 … 0.4 m
- Operating Principle: Diffuse reflection
- Switching Principle: IO-Link / NC contact/NO contact
RKU318-800/2T-M12 | 50136081
- Part no.: 50136081
- Series: 318
- Design: Cylindrical
- Operating range: 0 … 0.8 m
- Operating Principle: Reflection principle
- Switching Principle: NO (normally open)
RKU318-800/4T-M12 | 50136080
- Part no.: 50136080
- Series: 318
- Design: Cylindrical
- Operating range: 0 … 0.8 m
- Operating Principle: Reflection principle
- Switching Principle: NO (normally open)

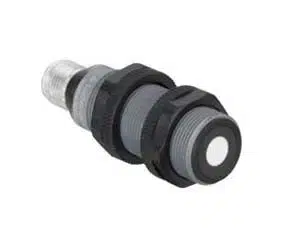

HTU318-1200/2T-M12 | 50136075
- Part Number: 50136075
- Series: 318
- Design: Cylindrical
- Operating Range: 0.08 to 1.2 meters
- Operating Principle: Diffuse reflection
- Output: NO (normally open)

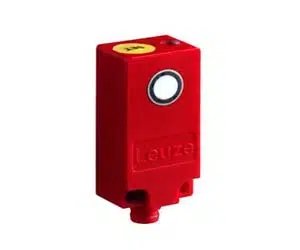

HRTU 420/2NO.2-S-S8 | 50113986
- Part Number: 50113986
- Series: 420
- Design: Cubic
- Operating Range: 0.01 to 0.2 meters
- Operating Principle: Diffuse reflection
- Output: NO (normally open)
HRTU 420/2NO.2-S8 | 50113985
- Part Number: 50113985
- Series: 420
- Design: Cubic
- Operating Range: 0.04 to 0.4 meters
- Operating Principle: Diffuse reflection
- Output: NO (normally open)
LSSU 18-S12 | 50103365
- Part Number: 50103365
- Series: 18
- Design: Cubic
- Operating Range: 0 … 0.65 m
- Operating Principle: Throughbeam
- Output: –

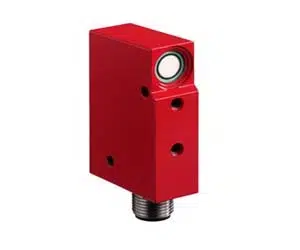

LSEU 18/24-S12 | 50103364
- Part Number: 50103364
- Series: 18
- Design: Cubic
- Operating Range: 0 to 0.65 meters
- Operating Principle: Throughbeam
- Output: NO (normally open)
HRTU 412/4NO.2-S-S12 | 50113993
- Part Number: 50113993
- Series: 412
- Design: Cylindrical
- Operating Range: 0.01 to 0.2 meters
- Operating Principle: Diffuse reflection
- Output: NO (normally open)

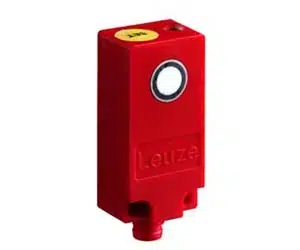

RKU 420/2NC.2-S8 | 50132082
- Part Number: 50132082
- Series: 420
- Design: Cubic
- Operating Range: 0 to 0.4 meters
- Operating Principle: Reflection principle
- Output: NC (normally closed)

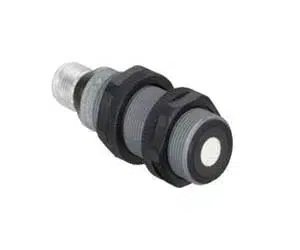

HTU318-300/4T-M12 | 50136070
- Part Number: 50136070
- Series: 318
- Design: Cylindrical
- Operating Range: 0.04 to 0.3 meters
- Operating Principle: Diffuse reflection
- Output: NO (normally open)
People Also Ask
What is the highest range of ultrasonic sensor?
There are three types of principles are available in the Ultrasonic Sensors like Diffuse Ultrasonic Sensors, Reflective type Ultrasonic Sensors, and Thru Beam Ultrasonic Sensors. Based on Brand and Based on Principles Sensing range will vary like Diffuse Type Approximately sensing range of 0.2 Meters to 6 Meters; Reflective ultrasonic sensors sensing range of 0.3 Meters to 15 Meters; and Through Beam Ultrasonic Sensors sensing range of 65 Meters.
What is ultrasonic sensor and how it works?
An ultrasonic sensor is one of the instruments that measure the distance of the object by using ultrasound waves. The ultrasonic sensor is the best option to detect objects with high reliability.
As we know ultrasonic sensors have Diffuse, Reflective, And Thru beam principles, these 3 types have a different working process but the common principle is Emitter will send the ultrasound waves and the Recivers will receive an Ultrasound signal.
What is the principle of ultrasonic sensor?
The principle of the ultrasonic sensor is based on the transmission and reception of ultrasonic waves. Here’s a concise explanation:
Ultrasonic sensors emit sound waves at a frequency higher than the human ear can detect, typically above 20 kHz. When these waves encounter an object, they reflect back toward the sensor. By measuring the time taken for the sound wave to travel to the object and back, the sensor can calculate the distance to the object. The speed of sound in air is known, so distance is determined using the formula: Distance = Speed *times Time/2. The division by 2 accounts for the round trip of the sound wave.
What are the three types of ultrasonic sensors?
The three primary types of ultrasonic sensors are:
- Through-beam (Transmitting and Receiving) Ultrasonic Sensors: These sensors involve separate transmitter and receiver units. The transmitter sends out ultrasonic waves, and when an object interrupts these waves, the receiver detects this change.
- Reflective (Proximity or Diffuse) Ultrasonic Sensors: These have a single unit that acts as both the transmitter and receiver. The sensor sends out ultrasonic waves which, when they hit an object, are reflected back to the sensor. The distance to the object can be calculated based on the time taken for the waves to return.
- Retro-reflective Ultrasonic Sensors: These sensors use a single device to send and receive ultrasonic waves, but they work with a reflector. When waves hit the reflector, they bounce back to the sensor. If an object comes between the sensor and reflector, it disrupts this reflection, and the sensor detects the object’s presence.
For further details on our Leuze Ultrasonic Sensor, feel free to contact us – IndMALL
