Introduction
We explore a detailed guide on limit switch terminologies. If you work with industrial automation or control systems, understanding the key terms associated with limit switches is crucial. In this guide, we will explore essential terminologies such as actuator types, contact configurations, electrical ratings, enclosure types, compliance standards, and more.
Whether you’re a beginner or an experienced professional, this resource will provide you with the necessary knowledge to navigate the world of limit switches with confidence. From learning about the different types of actuators and their applications to understanding the significance of compliance standards in ensuring safety and performance, we’ve got you covered.
By familiarizing yourself with these terminologies, you’ll be equipped to make informed decisions when selecting, installing, and maintaining limit switches. Get ready to expand your understanding of limit switch terminologies and enhance your proficiency in working with these critical components of industrial systems. Let’s begin our exploration of limit switch terminologies and unlock new possibilities in your professional endeavors.
A

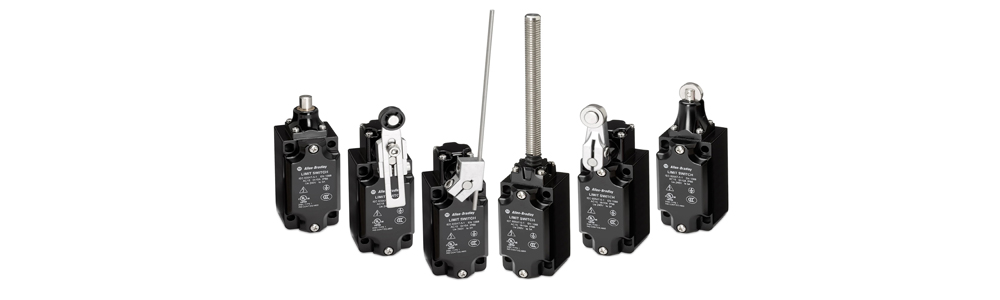

Actuator
The actuator in a limit switch interacts with the surroundings, triggering the switch upon contact or reaching a specific point. It can be a button or rod, like a plunger, that you press to activate the switch.
A roller actuator, a variant of the plunger, features a roller at the end to reduce friction and wear. Other types like lever or rotary actuators allow for more complex movements. The choice of the actuator depends on the specific requirements of the application where the limit switch is used.
Actuator Material
The actuator material in a limit switch refers to the substance used to construct the actuator. It plays a significant role in the durability, performance, and environmental resistance of the switch. Commonly used materials include:
Plastic: Employed for its lightweight and corrosion-resistant properties, usually in non-industrial environments.
Metal: Often stainless steel or brass, used in demanding industrial settings due to its robustness and resistance to harsh conditions.
Composite materials: Utilized when specific resistance properties, such as high-temperature endurance or chemical resistance, are required.
The selection of the actuator material is pivotal to the functionality and longevity of the limit switch in its operating environment.
Adjustable Setpoint
An adjustable set point in a limit switch means that you can change the specific point where the switch activates. For example, imagine a limit switch on a conveyor belt. The set point is the spot where the switch triggers to stop the belt.
If it’s adjustable, you can move that spot to different locations as needed. This flexibility is helpful when conditions change or when you want precise control over when the switch turns on. By adjusting the set point, you can use the same switch in different situations by just making a simple change.
C
Compliance Standards (UL, CE, CSA, etc.)
Compliance standards (UL, CE, CSA, etc.) show a limit switch meets safety and performance requirements.
UL (Underwriters Laboratories): This is a global safety certification company based in the United States. A UL certification indicates that the product has been tested and meets specific, defined safety standards.
CE (Conformité Européene): This marking shows that a product meets health, safety, and environmental standards for sales in the EEA. It signifies conformity to European Union regulations.
CSA (Canadian Standards Association): This organization develops standards in various areas under the supervision of the Standards Council of Canada. They are the largest standards development organization in Canada. Their standards ensure products are tested and meet safety and working guidelines recognized worldwide.
Contact Gap
The contact gap in a limit switch is the distance between the contacts when the switch is open. It prevents electrical arcing, ensuring switch longevity. In critical applications, a larger gap guarantees reliable opening, minimizing the risk of shorts. Factors like switch design, voltage, and safety standards influence the contact gap size.
D
Dielectric Strength
It is the ability of a material, like the insulating components in a limit switch, to resist electrical breakdown and conductance. It prevents harmful electrical discharges and is measured in volts per unit thickness. Higher values indicate better insulation and voltage resistance.
Differential Travel
Differential travel in a limit switch is the distance the actuator moves to reset the switch after activation. Smaller travel means faster response but can cause chattering. The ideal amount varies based on the application.
Direct Opening Action
Direct opening action, or positive opening, ensures that limit switch contacts physically separate when the switch actuates. It guarantees reliable switch opening, even in the presence of factors that could cause sticking. This feature is vital for safety applications and is mandated by certain safety standards.
Double Pole Double Throw (DPDT)
A DPDT switch has two input connections and can control two separate circuits by switching between two output connections. It provides flexibility to control multiple components or circuits with a single switch, making it useful in complex electrical systems.
Double Pole Single Throw (DPST)
A DPST switch has two input connections and can control two circuits simultaneously, switching them between on and off states together. It allows for the coordination of multiple independent circuits or components using a single switch.
E
Electrical Life
The electrical life of limit switches depends on factors like voltage, current, load type, switching frequency, and environmental conditions. Higher loads and frequent switching can shorten the switch’s lifespan. Understanding the electrical life helps schedule maintenance and anticipate replacements, preventing unexpected failures in critical systems.
Electrical Rating
The electrical rating of a limit switch indicates the maximum voltage and current it can handle safely. Exceeding this rating can cause damage or unsafe conditions. Choose suitable switch ratings for safe and reliable operation.
Enclosure Type
Enclosure type limit switch: critical outer casing design protecting internal components from environmental factors and physical impacts.
There are several types of enclosures, with each offering different levels of protection:
Non-Enclosed: These switches are not enclosed and are generally used in clean, dry environments.
General Purpose Enclosed: These offer a basic level of protection against dust and light-splashing water.
Watertight Enclosed: These provide a higher level of protection against dust and water.
Explosion-Proof Enclosed:
These are designed to prevent the ignition of surrounding flammable or explosive materials.
The choice of enclosure type will depend on the operating environment and the specific application requirements of the limit switch.
F
Fixed Setpoint
In a limit switch, a fixed set point is a predetermined point where the switch triggers and cannot be changed. It provides consistent and reliable operation in applications with constant conditions, like stopping a conveyor belt at a specific location. However, fixed set points lack the flexibility of switches with variable set points.
H
Housing Material
Housing material: protective casing material for a limit switch, safeguarding internal components.
The choice of housing material significantly impacts the durability, resistance to environmental factors and overall lifespan of the switch. Common materials include:
Plastic: Lightweight and corrosion-resistant, it’s often used for limit switch housings in less demanding, non-industrial environments.
Metal: Stainless steel, aluminum, and brass are commonly used in demanding industrial applications for their strength and durability in harsh conditions.
Composite materials: These are used when the application requires specific properties, like resistance to extreme temperatures, chemical exposures, or impacts.
Choosing the right housing material is crucial for optimal switch performance.
Hysteresis
Hysteresis in a limit switch is the delay between the actuation and de-actuation points. After being triggered, the switch requires a certain distance of movement to return to its original state. This prevents rapid toggling caused by minor vibrations. Hysteresis is helpful to prevent unintended actuation but may affect precision and response time, depending on the switch design.
I
Insulation Resistance
Insulation resistance is a measure of the ability of an insulating material to resist the flow of electrical current. It indicates the effectiveness of the insulation in preventing leakage of current. Insulation resistance measures the quality of insulation, with higher values indicating safer and more reliable electrical systems. It is assessed using an insulation resistance tester and is critical for evaluating insulation integrity in different applications.
IP Ratings
IP ratings globally standardize enclosure effectiveness against foreign bodies and moisture intrusion. These ratings are defined by the international standard EN 60529.
An IP rating consists of two digits. The first digit indicates the degree of protection against the ingress of solid objects. The second digit represents the protection against liquids (ranging from 0 – no protection, to 8 – protection against immersion under pressure).
An IP65-rated limit switch is dust-tight and resists water jets, while an IP67-rated switch withstands temporary water immersion.
Choosing a limit switch with the correct IP rating is essential for ensuring its reliable operation in its intended environment.
L
Lever
In a limit switch, a lever is an actuator that triggers the switch by moving. It has a contact at one end and operates when an external force is applied. Lever-actuated switches are designed in various sizes to fit different applications, like conveyor belt systems.
Limit Switch

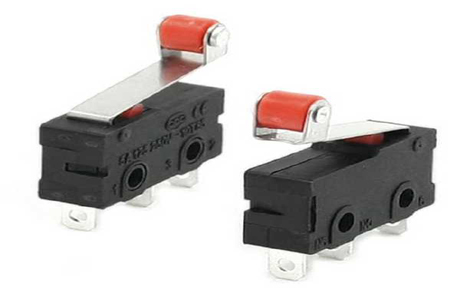

A limit switch is an electro mechanical device that controls machinery based on object position. It interrupts the electrical circuit at a specific point, Beginning or terminating operations. Used in industrial automation, safety, and consumer electronics, they vary in mounting, actuation, and electrical output.
Load Type (Resistive, Inductive, Capacitive)
Load type in the context of a limit switch refers to the kind of electrical load the switch is controlling. This affects the electrical and thermal stresses the switch experiences, which in turn impacts its longevity and reliability. There are three primary load types:
Resistive Loads: These include devices that have resistance but negligible inductance and capacitance. Examples are heaters, incandescent lamps, and resistors. The current and voltage are in phase in a resistive load.
Inductive Loads: These involve electro magnetic devices like motors, transformers, solenoids, and relays. They possess significant inductance, causing the current to lag behind the voltage.
Capacitive Loads: Devices such as capacitors or systems with capacitive components like power factor correction systems. Certain types of LED drivers are capacitive loads. Here, the current leads to the voltage.
M
Mechanical Life
Mechanical life refers to the estimated lifespan of a mechanical device, such as a limit switch, under specified operating conditions. It is usually expressed as the number of cycles (actuations) the device can reliably perform before mechanical failure is expected.
Mechanical life of a limit switch considers stress and wear on its mechanical components, including the actuator and contacts. Factors like operating force, frequency of operation, and environmental conditions can affect a switch’s mechanical life.
Mounting Style
Mounting style refers to the method of attaching and installing a limit switch in a specific application. It determines how the switch is secured to the equipment or machinery it is intended to monitor. Common mounting styles include panel mount, DIN rail mount, surface mount, flush mount, bracket mount, and adjustable mount.
Panel mount involves attaching the switch directly to a panel or control enclosure. DIN rail mount allows for easy installation and removal by snapping the switch onto a standardized metal rail. Surface mount eliminates the need for drilling or additional mounting hardware. Flush mount recesses the switch into a cavity or opening for a streamlined installation.
Bracket mount uses brackets designed for the specific switch model, offering flexibility in positioning and alignment. Adjustable mount enables fine-tuning of the switch’s position or angle. The choice of mounting style depends on factors such as available space, equipment requirements, and ease of installation. Each style offers unique advantages to ensure the proper and secure integration of the limit switch within the application.
N
NEMA Ratings
NEMA ratings are a set of standards established by the National Electrical Manufacturers Association (NEMA) in the United States. These ratings define the level of protection provided by electrical enclosures against environmental conditions. NEMA ratings indicate the enclosure’s ability to safeguard against factors such as dust, water, corrosion, and other hazardous elements.
The ratings are represented by numerical codes, such as NEMA 1, NEMA 4, NEMA 12, and so on. Each rating corresponds to a specific level of protection. For instance, NEMA 1 provides basic indoor protection against dust and accidental contact but offers no defense against liquids. NEMA 4 and NEMA 4X provide dust, water, and corrosion protection, ideal for outdoor and harsh environments.
Normally Closed (NC)
Normally Closed (NC) describes the default state of a switch contact where it remains closed or conducts current.
the absence of external force or actuation. In an NC configuration, the contact is closed at rest. opens when the switch is actuated, interrupting the current flow in the circuit.
NC contacts are commonly used in safety applications where the switch is designed to detect abnormal or hazardous conditions. The NC configuration ensures that the circuit is normally closed, providing a continuous electrical connection and allowing current to flow.
Normally Open (NO)
Normally Open (NO) is the default state of a switch contact where it remains open. does not conduct current until an external force or actuation is applied to the switch. This configuration is commonly used in limit switches and other electrical switches.
In the normal state or rest position, the NO contact remains open, interrupting the flow of current through the circuit. When the switch is actuated or triggered by an external force, the contact closes, allowing current to flow through the circuit.
O
Operating Force
Operating force refers to the amount of physical force required to actuate or trigger a switch, including limit switches. It is the force exerted on the switch’s actuator or button to initiate a change in the switch’s state.
The operating force can vary depending on the design and specifications of the switch. The operating force is an important consideration when selecting a switch for a particular application.
Operating Temperature
Operating temperature refers to the temperature range in which a limit switch can operate reliably without performance issues. It specifies the minimum and maximum temperatures at which the switch can function properly. Operating a limit switch outside its specified temperature range can lead to malfunctions or damage.
Select a limit switch with a compatible operating temperature range for reliable and accurate performance.
Overtravel
Overtravel in limit switches is the extra distance or movement the actuator can travel beyond the point of switch actuation. It is the distance the actuator can travel without causing damage or affecting the switch’s operation.
Overtravel is important for controlled actuator movement and allows for proper positioning within a system. It helps prevent excessive force or strain on the switch and ensures reliable and accurate operation.
P
Plunger
A plunger is an actuator commonly used in limit switches. It is a rod-like component that extends from the switch housing and is designed to be pressed or actuated. When the plunger is pressed, it triggers the internal mechanism of the switch, causing the switch contacts to change their state.
Plungers provide a direct and precise means of actuation, allowing for reliable and accurate detection of external forces or objects. The design of the plunger may vary depending on the specific limit switch model and application requirements.
Plunger Actuator
A plunger actuator is a type of actuator commonly used in limit switches. The plunger actuator is a cylindrical or rod-like component. that extends from the switch housing and is used for pressing or actuating.
When engaged, it triggers the internal mechanism, leading to a change in the switch contacts’ state. The design of the plunger actuator can vary based on the specific limit switch model and intended application.
Positive Opening Operation
Positive Opening Operation is a safety feature found in certain switches, including limit switches. It ensures that when the switch is actuated, the contacts open in a reliable and definite manner. This feature guarantees that the contacts do not stick or remain partially closed, reducing the risk of electrical hazards.
Positive Opening Operation is crucial in safety-critical applications where it is essential to ensure the disconnection of electrical circuits. It provides an additional level of confidence and reliability that the switch will consistently. And effectively break the electrical connection when triggered, enhancing overall safety.
Pretravel
Pretravel is the initial distance or movement needed to activate a switch before its contacts change state. It represents the required actuation distance or plunger movement to initiate switch contact movement. It is a characteristic that helps define the sensitivity and responsiveness of the switch.
Understanding the pretravel distance is important for accurate positioning and control in applications where precise actuation is required.
R
Release Force
Release force refers to the amount of force required to return a switch or component to its resting position after actuation. It represents the force needed to disengage the switch contacts and restore them to their original state.
The release force should be within an appropriate range to ensure smooth and reliable operation. Force should be balanced for an easy reset without unintended resets in limit switch operation.
Repeatability
Repeatability refers to the ability of a switch or sensor to consistently produce the same output or measurement under similar conditions. Repeatability in limit switches refers to the consistent and reliable detection or triggering of the same event or position. A high level of repeatability ensures consistent and accurate performance, reducing errors and maintaining reliable operation.
It is especially important in applications requiring precise and repeatable positioning or detection, enabling reliable control and measurement.
Roller Actuator
A roller actuator is a component used in limit switches that consists of a roller attached to the switch mechanism. It rolls along a surface and triggers the switch when it encounters an obstruction or changes in position.
It is commonly utilized in conveyor systems, door switches, and other applications. Where the switch needs to be triggered by object movement or position. Roller actuators provide reliable and efficient actuation, enabling accurate detection and control in various industrial and automation scenarios.
Roller Lever
A roller lever is a type of actuator commonly found in limit switches. It consists of a lever mechanism with a roller attached to one end. Roller lever actuator pivots, using a roller to trigger the switch on contact. Roller levers provide a mechanical advantage, allowing for precise and adjustable actuation positions.
Roller lever designs vary in size, shape, and configuration to accommodate different limit switch models and application requirements.
S
Safety Limit Switch
Safety limit switch: specialized for critical applications, ensuring personnel and equipment safety. These switches are designed with features such as redundancy, positive opening operation, and high reliability.
They are commonly used safety-related components in industrial machinery and robotic systems. Safety limit switches play a vital role in detecting potential hazards, triggering safety measures, and ensuring compliance.
Sealed Switch
Sealed switch: protected from dust, water, and moisture for enhanced durability and reliability. It features a sealed enclosure that prevents contaminants from entering the switch housing and affecting its internal components. Sealed switches are commonly used in outdoor or industrial applications where exposure to harsh environments is a concern.
They provide enhanced durability, reliability, and protection against environmental factors. The sealing methods employed in sealed switches ensure their resistance to dust, water, and other contaminants.
Shock Resistance
Shock resistance refers to a device’s ability to withstand mechanical shocks or impacts without damage or performance degradation. In switches, shock resistance is crucial in applications where the switch may encounter vibrations or sudden forces.
A switch with high shock resistance can maintain its electrical and mechanical properties even under these conditions.
Factors such as design, materials, and construction contribute to shock resistance. Manufacturers provide specifications indicating the maximum shock level a switch can endure.
Short Circuit Protection
Short circuit protection refers to the measures implemented to prevent excessive current flow in a circuit during a short circuit event. It involves the use of protective devices like fuses or circuit breakers that detect abnormal currents. Short circuit protection rapidly disconnects circuits to prevent risks like overheating and electrical fires, ensuring safety and circuit integrity.
Single Pole Double Throw (SPDT)
SPDT switch has one input and three outputs: NO, NC, and a common terminal. In its resting state, the common terminal is connected to the NC terminal, breaking the circuit.
Upon actuation, the common terminal disconnects from NC and connects to NO, forming a different circuit. The SPDT configuration is commonly used in applications requiring the selection between two different paths or positions.
Single Pole Single Throw (SPST)
Single Pole Single Throw (SPST) is a basic and common type of switch configuration. It consists of a single input terminal and a single output terminal. In its resting state, the switch maintains a single continuous circuit between the input and output terminals. When the switch is actuated or toggled, it either opens or closes the circuit, depending on its design.
Snap Action
Snap action is a switch mechanism that quickly transitions between states with a distinct snap sound and tactile feedback.
This mechanism ensures a reliable and precise switch operation, allowing for rapid and definitive switching between circuit states. Snap action switches are commonly used in applications where quick and decisive switching is necessary. Such as in electrical appliances, control systems, automotive devices, and safety switches, providing reliable and responsive performance.
Switching Frequency
Switching frequency is the speed at which a switch or component can transition between states in a specified time. It represents the number of times the switch can change its state per second and is typically measured in Hertz (Hz).
A higher switching frequency indicates a faster switching speed. Switching frequency: important for quick and frequent state changes.
Selecting a switch with an appropriate switching frequency ensures reliable and efficient operation within the desired switching speed range. Exceeding the rated switching frequency may lead to performance issues or premature failure of the switch.
T
Total Travel
Total travel is the full range of movement for an actuator or component, influencing switch activation and electrical connections. The total travel varies based on the switch design and application requirements. Choosing a switch with an appropriate total travel ensures proper functionality and reliable switching performance.
V
Vibration Resistance
Vibration resistance refers to a switch’s ability to withstand and operate effectively in the presence of mechanical vibrations. It is crucial in applications exposed to continuous or intermittent vibrations. A switch with good vibration resistance can maintain stable performance without damage or malfunction.
Factors like design, construction, and materials contribute to vibration resistance. Manufacturers often provide vibration resistance specifications to indicate a switch’s capability to withstand specific vibration levels.
Adequate vibration resistance ensures reliable operation and reduces the risk of switch failure or false triggering caused by vibrations. It is important to consider vibration resistance when selecting switches for vibration-prone environments.
W
Wire Connection Type
Wire connection type refers to the specific method used to establish electrical connections between wires and a switch or component. Common wire connection types include screw terminals, push-in terminals, crimp connectors, soldering, and quick-connect terminals.
The choice of connection type depends on factors like application, wire size, ease of installation, and electrical conductivity.
Manufacturers provide guidelines on the recommended wire connection type for their switches or components. Proper selection and installation of the appropriate wire connection type ensure secure and reliable electrical connections.
Wiring Diagram
A wiring diagram is a visual representation that depicts the connections and interconnections between electrical components and wires in a system. It uses symbols and lines to illustrate how the components are connected, providing a clear overview of the circuitry. Wiring diagrams are vital for technicians, electricians, and engineers to understand and troubleshoot electrical systems.
They ensure accurate installation, maintenance, and repair by showing the proper routing and connections of wires, switches, relays, and other components. Wiring diagrams are widely used in various industries, including automotive, industrial, and residential applications.
Conclusion
In conclusion, understanding limit switch terminologies is essential for anyone working with industrial automation, control systems, or electrical applications. By familiarizing yourself with the various terms associated with limit switches, you can effectively select, install, and troubleshoot these important components.
Throughout this guide, we have explored key terminologies such as actuator types, contact configurations, electrical ratings, enclosure types, compliance standards, and more. We have learned about the different types of limit switch actuators and their applications, the significance of contact configurations in controlling electrical circuits, and the importance of electrical ratings and compliance standards in ensuring safe and reliable operation.
By gaining a comprehensive understanding of limit switch terminologies, you can confidently communicate and collaborate with colleagues, suppliers, and technicians involved in industrial systems. You will be better equipped to make informed decisions, troubleshoot issues, and optimize the performance of limit switches in your applications.
Remember to continue learning and staying updated on emerging technologies and industry standards to ensure that your knowledge remains current and relevant. With your newfound understanding of limit switch terminologies, you are well on your way to success in the field of industrial automation and control systems.
