Masibus Indicator | Process and Digital Indicators
IndMALL Automation offers a range of Masibus Indicators, meticulously designed to fulfill diverse industrial needs with accuracy and reliability. The Totalizer 1008S/1008S-XP is known for its detailed flow rate display and robust RS485 communication. The Process Indicator 409 supports various input types and offers programmable set points for comprehensive process control. The 409-W model provides precise strain gauge measurements, while the Digital Indicator series (406/406L/408-M) enhances monitoring visibility and accuracy. The Bar Graph Indicator 40005E combines advanced display technology with flexible configurations.

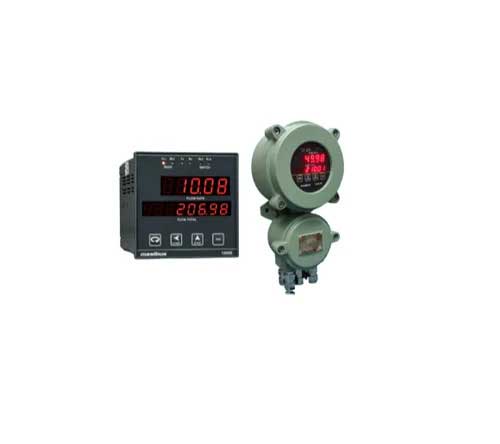

Masibus Indicator: Totalizer 1008S/ 1008S-XP
Displays: 5-digit flow rate and 8-digit total with rollover counts.
- Relays and Inputs: Four relays and digital inputs for advanced flow control and remote operations.
- Communication: RS485 for integration with PLC/DCS/SCADA systems.
- Additional Features:
- Square root extraction for differential pressure transmitters.
- Mass flow measurement capabilities with optional pressure and temperature inputs.
- Designed for high accuracy and fast response, suitable for diverse industrial applications.

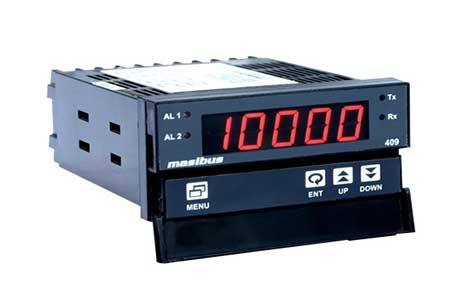

Masibus Process Indicator: 409
Type: Micro-controller based 5-digit process indicator.
- Input Compatibility: Designed to accept multiple input types for versatile application.
- Programmable Set Points: Includes two programmable set points with individual relays for process control.
- Display Options: Available in standard and large display versions (409-4IN, 409-6IN) for enhanced visibility across wide areas.
- Power Supply: Equipped with SMPS for reliable performance and includes a transmitter power supply.

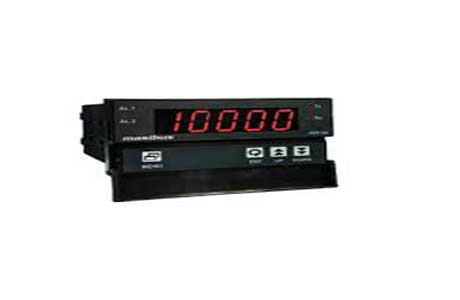

Masibus Digital Indicator: 409-W
Display: 5-digit, 0.56″ red seven-segment display for clear visibility of strain gauge values.
- Input Range: Field selectable load cell input from -75 to +75mV DC.
- Excitation Voltage: Built-in factory-set load cell excitation voltage, selectable from 5 to 15V DC.
- Adjustments: Tare adjustment possible through keypad or digital input.
- Output Options: Provides relay output for alarms and supports retransmission outputs (optional).
- Communication: Optional RS485 interface for integration with SCADA/PLC systems.

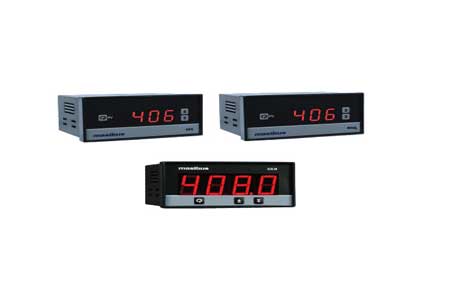

Digital Indicator Masibus: 406/406L/408-M
Display Sizes: 0.56″ for 406 and 406L, 0.8″ for 408-M, enhancing visibility.
- Input Types: Compatible with multiple input types including thermocouples, RTDs, volts, and mA.
- Accuracy: High precision with ±0.25% for T/C and RTD inputs; ±0.1% for linear inputs.
- Built-in Features: Includes a transmitter power supply, easy configuration via front keys, and protections against reverse connections and over-range inputs.

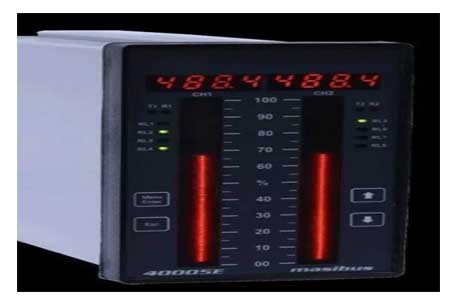

Masibus Bargraph Indicator: 40005E
Display: 4-digit numeric and 101-segment bar display.
- Input: Supports universal inputs.
- Configuration: Available in single and dual channel options.
- Accuracy: High display accuracy of 0.1% FS.
- Features: Enhanced version of the legacy model 40005, microcontroller-based for precise operation.
- Applications: Suitable for visual process monitoring in various industrial settings.
Frequently Asked Questions
What are the 5 types of indicators?
There are numerous types of indicators used to measure and evaluate performance. Common types include input indicators, which track resources used in processes. Output indicators measure the direct results of activities. Outcome indicators assess the effects of outputs on final goals. Impact indicators gauge the broader changes or benefits.
What is the price of masibus 409 indicator?
The Masibus 409 indicator is available at varying prices depending on the model and features. For example, the wall-mounted Masibus 409-4IN Large Display Process Indicator, operating at 230VAC, is priced at Rs 14,000 in Chennai. Prices may vary by region and configuration.
What is self indicator?
A self-indicator is a chemical substance that signals the endpoint of reactions like titration. It not only indicates the completion of a reaction but also actively participates in it. This dual role makes self-indicators essential for accurate chemical measurements and analyses.
What is self indicator?
A self-indicator is a chemical substance that signals the endpoint of reactions like titration. It not only indicates the completion of a reaction but also actively participates in it. This dual role makes self-indicators essential for accurate chemical measurements and analyses.
Contact Us for Masibus Indicator.
