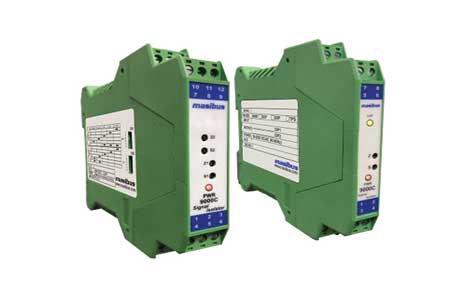

Masibus Signal Conditioners | Signal Isolators and Converters
IndMALL Automation proudly presents the Masibus Signal Conditioners, a line designed to facilitate precise control and monitoring. These conditioners feature a compact DIN rail mount design, ensuring easy installation across industrial settings. With high 3-port isolation, they prevent signal interference, enhancing system reliability. They are specifically engineered to isolate 4-20mA analog field signals, providing versatility across a range of signal levels from millivolts to volts. Additional features include an inbuilt transmitter power supply, which expands their utility in diverse applications. Moreover, they offer high KV isolation and robust short circuit protection, guaranteeing enhanced safety and reliability. This range is ideal for applications requiring stringent signal integrity and precision.

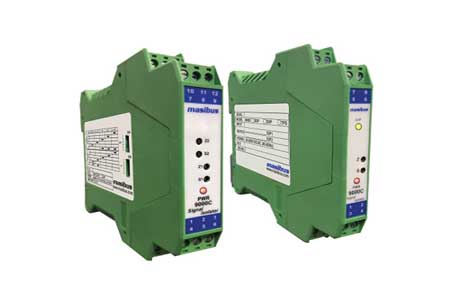

Masibus Signal Conditioners:9000Ex-1/Ex-2
Mounting: Compact DIN rail mount design for easy installation.
- Isolation: High 3-port isolation of each signal to prevent signal interference.
- Input Compatibility: Designed to isolate 4-20mA analog field signals effectively.
- Versatility: Can be used with a range of signal levels from millivolts to volts, both at input and output sides.
- Additional Features: Includes an inbuilt transmitter power supply, enhancing its utility in various applications.
- Safety and Protection: Features high KV isolation and short circuit protection for enhanced safety and reliability.

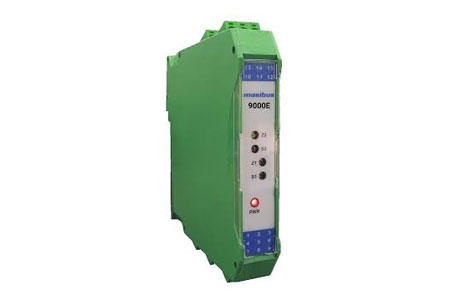

Masibus Signal Isolator: 9000E
Compact Design: Features a compact DIN-Rail mount setup, only 17.6mm in width.
- High Isolation: Offers high KV 3-port isolation for each channel, ensuring signal integrity.
- Input Flexibility: Supports a 2W transmitter input with HART Pass, accommodating a wide range of industry standards.
- Precision: Noted for its high accuracy, low drift, and low temperature coefficient.
- Response and Stability: Fast response and high noise rejection for reliable performance.
- Applications: Ideal for field signal isolation, signal distribution, and translation in factory automation, SCADA, and DCS systems.

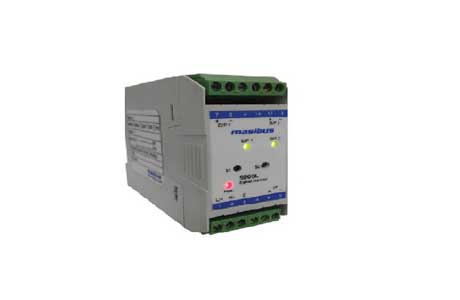

Masibus Signal Converter: 9000L & 9000LE
Input Flexibility: These isolators can convert 0-10V to 4-20mA signals, accommodating a wide range of field applications.
- High Isolation Voltage: Offers up to 1.5 KV AC isolation to enhance safety and signal integrity.
- Compact Design: Designed for easy mounting and integration with various systems.
- Versatile Applications: Suitable for use in industrial automation to ensure accurate signal isolation and conversion.
- Advanced Features: Equipped with modern technology for reliable performance in demanding environments.
- Series Options: Available in multiple series including 9000L and 9000LE, each tailored to specific industrial needs.

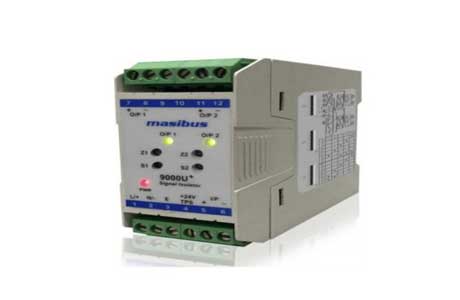

Masibus Signal Isolator 9000U: 9000U+
Design: Slim, rugged 4-wire isolator with a slim DIN Rail mount design for easy installation.
- Dual Output Option: Acts as a signal distributor, ideal for applications requiring signal distribution across multiple locations.
- Power Supply: Features built-in transmitter power supply (TPS) to drive field transmitters, along with an extended universal power supply range of 20V to 265V DC or AC.
- Noise Rejection: High noise rejection ratio ensures accurate and noise-free signal conditioning.
- Isolation: Offers 2.0KVAC three-port isolation to protect sensitive system components against voltage spikes.
- Output Indicators: Includes “Active Output” LED indication for current outputs, enhancing operational visibility.

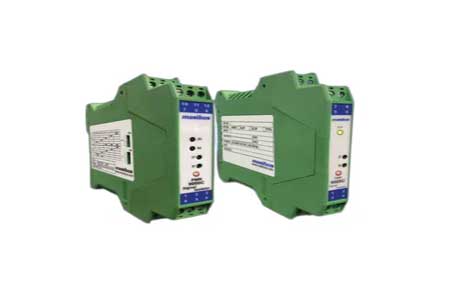

Masibus Signal Isolator 9000C
Design: Slim DIN rail mount with 12.5mm width for single output and 17.5mm for dual output.
- Configuration: Available in single or dual output models; options for Auxiliary Powered (AP) and Loop Powered (LP) versions.
- Flexibility: Features switch selectable I/O configuration for ranges 0/4-20mA, 0/1-5V, and 0-10V.
- Power Supply: Extended universal power range of 20V to 265V DC or AC.
- Isolation: Provides full three-port isolation and high Common Mode Rejection Ratio (CMRR) and Noise Mode Rejection Ratio (NMRR).
- Safety: Offers short circuit protection and high output load driving capability.
- Enhanced Features: Model ‘M’ allows for minor calibration and I/O changes using front accessible trimpots and DIP switches.
Explore the Masibus Signal Conditioners, expertly engineered for precise electrical isolation and protection in industrial environments. These conditioners are designed to eliminate erratic measurements caused by ground loops, enhancing safety and reliability. Available in models like the 9000U⁺ and 9000C, they offer rugged, compact designs perfect for DIN rail mounting. Whether for single or dual output needs, Masibus provides solutions that ensure noise-free signal conditioning. With the capability to handle a wide range of voltage and current inputs, these devices are indispensable in applications requiring stringent signal integrity, from factory automation to sophisticated control systems. Discover how Masibus can streamline and secure your industrial signal processing tasks.
Frequently Asked Questions
What is the price of masibus isolated converter 9000 series?
The price of the Masibus Isolated Converter 9000 Series varies based on model and features. For instance, the Masibus Signal Isolator 9000U is priced at Rs 3,100. Prices may differ for other models within the 9000 series, reflecting their specific capabilities and configurations.
What is signal isolator 4 20mA?
A 4-20mA signal isolator provides three-way isolation between input, output, and power circuits. It ensures signal integrity and eliminates ground loop issues in process control systems. Commonly used in industrial environments, these isolators enhance operational safety and system reliability by isolating electrical signals.
What is TPS in signal isolator?
TPS in a signal isolator stands for Transmitter Power Supply. It powers field transmitters that deliver 0/4-20 mA DC output signals. This feature is essential for enabling continuous and reliable signal transmission from sensors to control systems in various industrial applications.
What is the function of signal isolator?
A signal isolator is a device used to interface process signals with other devices while ensuring signal integrity. It stabilizes and accurately outputs signals by providing superior resistance to electromagnetic interference. This function is crucial in maintaining reliable data transmission across different parts of a control system.
