Mornsun SMPS: AC to DC Converter & Power Supplies
IndMALL Automation provides Mornsun SMPS, a versatile range of industrial power solutions. Our product range includes Mornsun Power Supplies, Mornsun DC DC Converters, and Mornsun AC DC Converters, catering to a wide array of power needs. The LM-R2 Series, a highlight of Mornsun Power, offers power ranges from 35-350W and output voltages of 5-54VDC, boasting significant improvements in size, efficiency, and safety standards.
The LMF and LS Series, representing Mornsun commitment to high efficiency and reliability, are perfect for industrial control and smart home applications. Mornsun AC DC power solutions, such as the LD and LI Series, are renowned for their compact design, low power consumption, and strong anti-interference capabilities. Mornsun RS-485 and RS232 transceivers provide robust communication solutions,
Mornsun SMPS: LM-R2 Series
The main specifications of the Mornsun LM-R2 Series are as follows:
- Power range: 35-350W
- Output voltage range: 5-54VDC
- Notable improvements in dimensions, process, and structure
- High efficiency and performance in operating temperature range, load capacity, leakage current, and EMC
- Safety compliance with IEC/EN/UL/BS EN62368, EN60335, EN61558, EN62477 standards
Mornsun Power Supply: LMF Series
The Mornsun LMF series is an enclosed AC-DC switching power supply with the following main specifications:
- Universal AC input and DC input voltage acceptance.
- Cost-effective with low no-load power consumption.
- High efficiency and high reliability.
- Double or reinforced insulation.
- Excellent EMC performance.
Mornsun SMPS Power Supply: LS Series
MORNSUN SMPS Power Supply LS Series AC DC Converters are as follows:
- They are compact, low-cost isolated AC DC converters.
- Feature an ultra-wide input range, accepting both AC and DC voltage.
- Ideal for applications in industrial control, electric power, instrumentation, and smart home.
- Designed to meet requirements in terms of size, cost, performance, reliability, and flexible design.
- Suitable for smart designs requiring flexible peripheral circuits.
Mornsun AC to DC Converter: LD Series
MORNSUN 3-90W LD series power converters are as follows:
- Compact size power converters.
- Features wide AC input and accepts DC input voltage.
- Characterized by low power consumption, high efficiency, and high reliability.
- Meets international UL62368 and EN62368 standards.
- Suitable for use in industrial, electric power, instrumentation, communication, and civil applications.
Mornsun AC DC: LI Series
The plastic DIN rail LI series AC-DC power supply is:
- Power range: 15-150W.
- Features: High efficiency, low power consumption.
- Mounting: Standard DIN rail mounting.
- Structure: Compact design.
- Capability: Strong anti-interference.
- Applications: Widely used in industrial control equipment, machines, rail transportation, and other industrial environments.
Mornsun Power Supplies: LS-K Series
Mornsun LS-K series is a highly efficient green power AC-DC Converter series. Key features include:
- Wide input voltage range, accepting both DC and AC input.
- High efficiency and low power consumption.
- Suitable for industrial control instrumentation, electric power applications, and smart home applications.
- Suitable for environments with lower EMC compliance demands.
Mornsun AC DC Power Supply: RS-485 Series
RS-485 Transceiver Module from Mornsun:
- Interface: RS-485
- Baud Rate: Up to 500kbps
- Power Supply: 3.3V or 5V
- Isolation Voltage: 2.5kVrms
- Operating Temperature: -40°C to +85°C
- Applications: Suitable for industrial automation, motor drives, and other RS-485 communication applications.

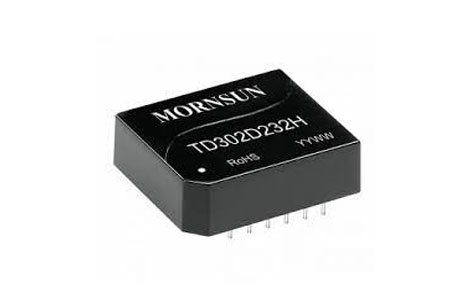

RS232 Transceiver
- Components: Integrated transceiver, isolation chip, DC/DC isolated power unit
- Function: Facilitates signal transceiving and power isolation
- Applications: Automotive industry, rail transportation, smart monitoring, smart meters
- Key Feature: Reliable RS-232 communication with power isolation
- Usage: Ideal for industrial bus communications and various industrial applications

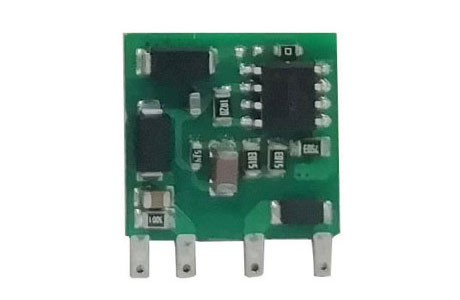

Mornsun DC DC Converter: SMD
SMD Unregulated Output (0.2-2W) products from MORNSUN include:
- Power Range: These converters are available in a range of 0.2W to 2W.
- Input Voltage (Vin): The input voltage options include 3.3V, 5V, 12V, 15V, and 24V DC.
- Output Voltage (Vout): The output voltage varies and includes options like ±3.3V, ±5V, ±9V, ±12V, ±15V, ±24V, 3.3V, 5V, 6V, 7V, 9V, 12V, 15V, and 24V DC.
- Number of Outputs: These converters are available with either single or dual output options.
- Isolation Voltage: The isolation voltage ranges from 1500VDC to 4200VDC.
Product List:
Model No |
Image |
Output Power(W) |
AC Voltage – Input |
DC Voltage – Input |
Current – Output (Max) |
|---|---|---|---|---|---|
| LIF240-10B24R2S |
|
240W | 85 ~ 264 VAC | 120V-370V | 10A |
| LM50-20B24 |
|
53W | 85 ~ 264 VAC | 120 ~ 373 VDC | 2.2A |

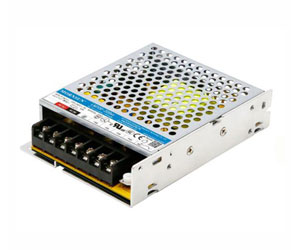

| LM150-20B24 |
|
156W | 85 ~ 264 VAC | 120 ~ 370 VDC | 6.5A |

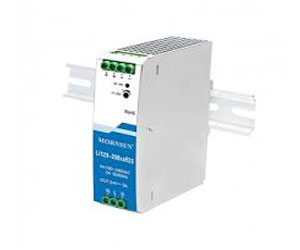

| LI120-20B24R2S |
|
120W | 90 ~ 264 VAC | 127V-370V | 5A |
Our product range includes several models of Mornsun power supplies, each designed to cater to different power requirements. The LIF240-10B24R2S, for instance, boasts an impressive output power of 240W and is compatible with an AC input voltage range of 85 to 264 VAC, as well as a DC input of 120V-370V, delivering a maximum current output of 10A. The LM50-20B24 offers a 53W output power, accommodating the same AC input voltage range and a DC input range of 120 to 373 VDC, with a 2.2A maximum current output.
For higher power needs, the LM150-20B24 is an ideal choice, providing 156W of output power, operating within an AC input voltage range of 85 to 264 VAC or a DC input range of 120 to 370 VDC, and offering a 6.5A maximum current output. The LI120-20B24R2S, with its 120W output power, is designed for an AC input voltage range of 90 to 264 VAC or a DC input of 127V-370V, and it can deliver up to 5A of current.
Frequently Asked Questions
How do you Convert AC to DC?
What is the main function of SMPS?
The main function of an SMPS (Switched-Mode Power Supply) is to convert electrical power efficiently. It uses a switching regulator to control and stabilize the output voltage. By rapidly switching on and off, it minimizes energy loss, making it more efficient than traditional linear power supplies. SMPS is widely used in computer and electronic applications.
Is SMPS used for AC or DC?
An SMPS (Switched-Mode Power Supply) is versatile and used for both AC and DC inputs. It efficiently converts AC to DC, stabilizing and regulating the output voltage. In electronic devices, SMPS adapts to varying power demands, ensuring consistent DC output. This adaptability makes it ideal for a wide range of applications.
What are the three types of DC-DC converter?
There are three primary types of DC-DC converters: Buck, Boost, and Buck-Boost. Buck converters reduce voltage, Boost converters increase it, and Buck-Boost converters can do both. Each type is designed for specific voltage regulation needs, making them essential in various electronic applications for efficient power management.
Choose IndMALL for the best Mornsun SMPS Power Supplies and exceptional customer support.
