Multispan Panel Meters | DC & 3 Phase Ampere Meter
Visit IndMALL Automation to view our range of Multispan Panel Meters, suitable for various industrial applications. These meters include Digital Multi Function models with advanced display options, facilitating accurate measurements of electrical parameters like voltage, current, power, and energy. With configurations for single-phase and three-phase setups, these meters integrate seamlessly into your systems, ensuring precision in energy management tasks.

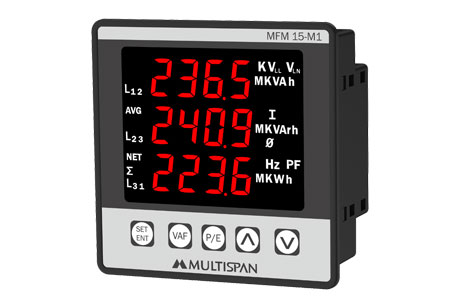

Multispan Panel Meters: Digital Multi Function
Available with three-line and four-line LCD display options.
- Measures various electrical parameters including voltage, current, power, and energy.
- Configurable for different phase and wire systems.
- Features programmable transformer ratios for accuracy.
- Includes RS-485 Modbus communication for system integration.
- Capable of measuring total harmonic distortion.

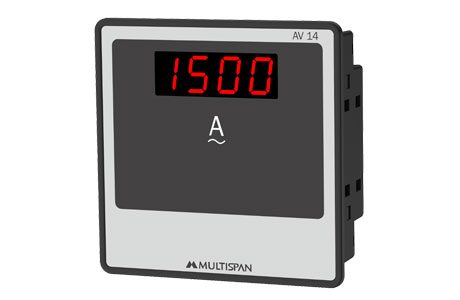

Multispan Ampere Meter: Digital 1Ø AC
It offers a 3Ø Ampere Meter with individual displays for each phase current, customizable CT up to 6000/5, and an optional RS-485 Modbus.
- The 3Ø Voltmeter provides measurements for 3-phase 3-wire and 4-wire setups, with voltage ranges from 100V to 520KV AC.
- A Power Factor Indicator is available for 1-phase and 3-phase setups, including optional relay outputs for alarms.

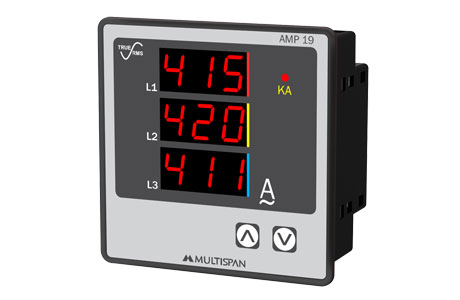

Multispan 3 Phase Panel Meter: Digital 3Ø AC
1 Ph AC Voltmeter: Features a 7-segment 3-digit LED display, measuring a range of 10-500V AC.
- 1 Ph AC Ampere Meter: Comes with a 4-digit LED display, with CTs selectable up to 4000/5.
- Ampere + Volt Combined Meter: Provides separate displays for amperage and voltage, allowing direct readings up to 30A AC.
- Kw Meter: Targets single-phase 2-wire systems with a voltage range up to 300V AC.
- Frequency Meter: Measures frequency from 45.0 to 55.0 Hz with inputs from voltage and CT.

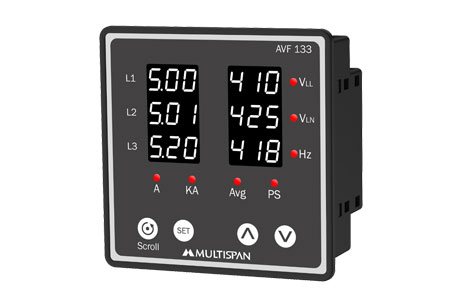

Multispan AVF Meter
Supports 3Ph-3W/4W and 1P-2W configurations.
- Features a 3-line display for voltage and current measurement.
- Model AVF-133 includes a 6-line, 7-segment LED display.
- Offers RS-485 Modbus communication in the AVF-133 model.

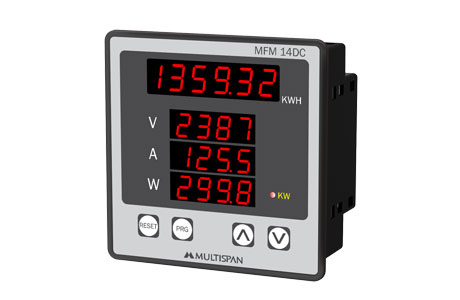

Multispan DC Ampere Panel Meter
DC Multifunction Meter: Measures Amps, Volts, Watts, KW, KWH; accepts inputs from 75mV to 75mV DC; includes RS-485 Modbus communication.
- DC Amp+ Volt Combined Meter: Measures direct 20A DC and Voltage; optional RS-485 MODBUS; uses external shunts.
- DC Volt Meter: Measures up to 1000V DC; features a wide auxiliary supply range.
- DC Ampere Meters: Available with built-in or external shunts; measures up to 999
Multispan Panel Meters, essential for various power and energy monitoring tasks. This selection includes Digital Multi-Function Meters that measure and display voltage, current, frequency, power factor, energy, and harmonic distortion. They are available in both LED and LCD versions, suitable for energy management systems (EMS), and include features like Modbus communication. The range extends to Digital Energy Meters, Single and Three Phase AC Panel Meters, and AVF Meters, each offering specific functions for detailed energy analysis and system management in industrial settings. Whether you’re integrating into an existing system or setting up a new one, Multispan has the precision instruments to meet your needs.
Frequently Asked Questions
What are the different types of three-phase panel meters?
Three-phase panel meters come in several types, including voltmeters, ammeters, power factor meters, frequency meters, and energy meters. Voltmeters measure voltage across phases, ammeters track current, power factor meters assess efficiency, frequency meters check electrical system frequency, and energy meters monitor power consumption. These meters ensure accurate monitoring and management of electrical systems.
What is the range of ampere meter?
The range of an ampere meter, or ammeter, can vary widely depending on its design and intended use. Typical handheld ammeters might measure from microamperes up to 10 amperes, while panel ammeters installed in electrical panels can measure up to thousands of amperes. Specialized ammeters provide readings for specific applications and settings.
What is the difference between amp meter and voltage meter?
An amp meter measures the electrical current flowing through a circuit, expressed in amperes, while a voltage meter measures the electrical potential difference between two points in a circuit, expressed in volts. Amp meters are used to check electrical load, whereas voltage meters are used to ensure correct operating voltage.
Request Quote for Multispan Panel Meters.
