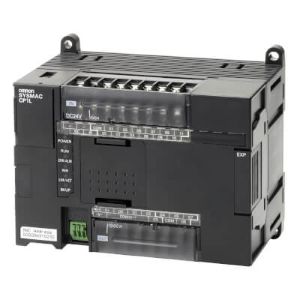

CP1L-EL20DR-D: Omron PLC 8 Relay OutputsCP1L-EL20DR-D: Omron PLC 8 Relay Outputs
Technical specifications of Omron PLC 8 Relay Outputs CP1L-EL20DR-D:
| Spec | Value |
|---|---|
| Power Supply | 24 VDC |
| Inputs | 12 |
| Outputs | 8 |
| Control method | Stored program method |
| Power consumption | 13 W max. |
Omron PLC 8 Relay Outputs CP1L-EL20DR-D Technical Specifications:Omron PLC 8 Relay Outputs CP1L-EL20DR-D Technical Specifications:
| Specification | Value |
|---|---|
| Power Supply | 24 VDC |
| Output method | Relay output |
| Inputs | 12 |
| Outputs | 8 |
| Control method | Stored program method |
| I/O control method | Cyclic scan with immediate refreshing |
| Program language | Ladder diagram |
| Function blocks | Maximum number of function block definitions: 128 Maximum number of instances: 256; Languages usable in function block definitions: Ladder diagrams, structured text (ST) |
| Instruction length | 1 to 7 steps per instruction |
| Instructions | Approx. 500 (function codes: 3 digits) |
| Instruction execution time | Basic instructions: 0.55 μs min. Special instructions: 4.1 μs min |
| Common processing time | 0.4ms |
| Operating voltage range | 20.4 to 26.4 VDC |
| Power consumption | 13 W max. |
| Inrush current | 30 A max. (for cold start at room temperature) 20 ms max. |
| External power supply | None |
| Insulation resistance | No insulation between primary and secondary for DC power supply |
| Dielectric strength | No insulation between primary and secondary for DC power supply |
| Noise immunity | Conforms to IEC 61000-4-4. 2 kV (power supply line) |
| Vibration resistance | 5 to 8.4 Hz, 3.5 mm amplitude, 8.4 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for 100 minutes each (time coefficient of 10 minutes × coefficient factor of 10 = total time of 100 minutes) |
| Shock resistance | Conforms to JIS C60068-2-27. 147 m/s2 three times each in X, Y, and Z directions |
| Ambient operating temperature | 0 to 55°C |
| Ambient humidity | 10% to 90% (with no condensation) |
| Ambient operating environment | No corrosive gas |
| Ambient storage temperature | −20 to 75°C (Excluding battery.) |
| Power holding time | 2 ms min |
Talk to Our Engineer for Omron PLC 8 Relay Outputs CP1L-EL20DR-D with exclusive offers. Core System Specifications of CP1L-EL20DR-D are 24 VDC power supply and Relay output. It has 12 inputs and 8 outputs, utilizing a Stored program method and Cyclic scan with immediate refreshing for control. Programming is done through a Ladder diagram with Maximum number of function block definitions: 128 Maximum number of instances: 256; Languages usable in function block definitions: Ladder diagrams, structured text (ST). The instruction length ranges 1 to 7 steps per instruction, with Approx. 500 (function codes: 3 digits) instructions available. It operates within a voltage range of 20.4 to 26.4 VDC and consumes 13 W max.. Don't Miss Out on a Quote for your requirement of Omron PLC 8 Relay Outputs. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.Talk to Our Engineer for Omron PLC 8 Relay Outputs CP1L-EL20DR-D with exclusive offers. Core System Specifications of CP1L-EL20DR-D are 24 VDC power supply and Relay output. It has 12 inputs and 8 outputs, utilizing a Stored program method and Cyclic scan with immediate refreshing for control. Programming is done through a Ladder diagram with Maximum number of function block definitions: 128 Maximum number of instances: 256; Languages usable in function block definitions: Ladder diagrams, structured text (ST). The instruction length ranges 1 to 7 steps per instruction, with Approx. 500 (function codes: 3 digits) instructions available. It operates within a voltage range of 20.4 to 26.4 VDC and consumes 13 W max.. Don't Miss Out on a Quote for your requirement of Omron PLC 8 Relay Outputs. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
