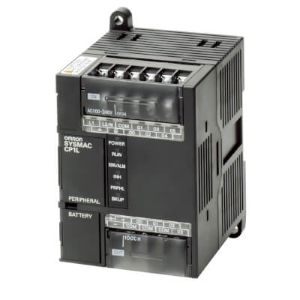

CP1L-L14DT-D: Omron PLC 6 Transistor OutputsCP1L-L14DT-D: Omron PLC 6 Transistor Outputs
Technical specifications of Omron PLC 6 Transistor Outputs CP1L-L14DT-D:
| Spec | Value |
|---|---|
| Power Supply | 24 VDC |
| Inputs | 8 |
| Outputs | 6 |
| Control method | Stored program method |
| Power consumption | 13 W max. |
Omron PLC 6 Transistor Outputs CP1L-L14DT-D Technical Specifications:Omron PLC 6 Transistor Outputs CP1L-L14DT-D Technical Specifications:
| Specification | Value |
|---|---|
| Power Supply | 24 VDC |
| Output method | Transistor output (sinking) |
| Inputs | 8 |
| Outputs | 6 |
| Control method | Stored program method |
| I/O control method | Cyclic scan with immediate refreshing |
| Program language | Ladder diagram |
| Function blocks | Maximum number of function block definitions: 128 Maximum number of instances: 256; Languages usable in function block definitions: Ladder diagrams, structured text (ST) |
| Instruction length | 1 to 7 steps per instruction |
| Instructions | Approx. 500 (function codes: 3 digits) |
| Instruction execution time | Basic instructions: 0.55 μs min. Special instructions: 4.1 μs min |
| Common processing time | 0.4ms |
| Operating voltage range | 20.4 to 26.4 VDC |
| Power consumption | 13 W max. |
| Inrush current | 30 A max. (for cold start at room temperature) 20 ms max. |
| External power supply | None |
| Insulation resistance | No insulation between primary and secondary for DC power supply |
| Dielectric strength | No insulation between primary and secondary for DC power supply |
| Noise immunity | Conforms to IEC 61000-4-4. 2 kV (power supply line) |
| Vibration resistance | Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for 80 minutes each. Sweep time: 8 minutes × 10 sweeps = total time of 80 minutes) |
| Shock resistance | Conforms to JIS C60068-2-27. 147 m/s2 three times each in X, Y, and Z directions |
| Ambient operating temperature | 0 to 55°C |
| Ambient humidity | 10% to 90% (with no condensation) |
| Ambient operating environment | No corrosive gas |
| Ambient storage temperature | −20 to 75°C (Excluding battery.) |
| Power holding time | 2 ms min. |
Reach Us by Email for Omron PLC 6 Transistor Outputs CP1L-L14DT-D at Discounted Rates. Key Technical Features of CP1L-L14DT-D are 24 VDC power supply and Transistor output (sinking). It has 8 inputs and 6 outputs, utilizing a Stored program method and Cyclic scan with immediate refreshing for control. Programming is done through a Ladder diagram with Maximum number of function block definitions: 128 Maximum number of instances: 256; Languages usable in function block definitions: Ladder diagrams, structured text (ST). The instruction length ranges 1 to 7 steps per instruction, with Approx. 500 (function codes: 3 digits) instructions available. It operates within a voltage range of 20.4 to 26.4 VDC and consumes 13 W max.. Navigate Your Needs with a Quote for your requirement of Omron PLC 6 Transistor Outputs. Our pricing and support are unrivaled, especially when compared to other Competitors.Reach Us by Email for Omron PLC 6 Transistor Outputs CP1L-L14DT-D at Discounted Rates. Key Technical Features of CP1L-L14DT-D are 24 VDC power supply and Transistor output (sinking). It has 8 inputs and 6 outputs, utilizing a Stored program method and Cyclic scan with immediate refreshing for control. Programming is done through a Ladder diagram with Maximum number of function block definitions: 128 Maximum number of instances: 256; Languages usable in function block definitions: Ladder diagrams, structured text (ST). The instruction length ranges 1 to 7 steps per instruction, with Approx. 500 (function codes: 3 digits) instructions available. It operates within a voltage range of 20.4 to 26.4 VDC and consumes 13 W max.. Navigate Your Needs with a Quote for your requirement of Omron PLC 6 Transistor Outputs. Our pricing and support are unrivaled, especially when compared to other Competitors.
