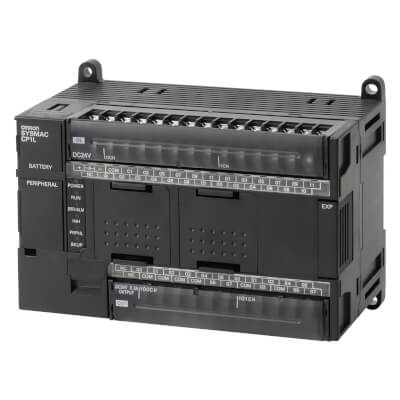

CP1L-M30DR-D: Omron PLC DC 24,18 Inputs, 12 OutputsCP1L-M30DR-D: Omron PLC DC 24,18 Inputs, 12 Outputs
Technical specifications of Omron PLC DC 24,18 Inputs, 12 Outputs CP1L-M30DR-D:
| Spec | Value |
|---|---|
| Power Supply | 24 VDC |
| Inputs | 18 |
| Outputs | 12 |
| Control method | Stored program method |
| Power consumption | 20 W max. |
Omron PLC DC 24,18 Inputs, 12 Outputs CP1L-M30DR-D Technical Specifications:Omron PLC DC 24,18 Inputs, 12 Outputs CP1L-M30DR-D Technical Specifications:
| Specification | Value |
|---|---|
| Power Supply | 24 VDC |
| Output method | Relay output |
| Inputs | 18 |
| Outputs | 12 |
| Control method | Stored program method |
| I/O control method | Cyclic scan with immediate refreshing |
| Program language | Ladder diagram |
| Function blocks | Maximum number of function block definitions: 128 Maximum number of instances: 256; Languages usable in function block definitions: Ladder diagrams, structured text (ST) |
| Instruction length | 1 to 7 steps per instruction |
| Instructions | Approx. 500 (function codes: 3 digits) |
| Instruction execution time | Basic instructions: 0.55 μs min. Special instructions: 4.1 μs min |
| Common processing time | 0.4ms |
| Operating voltage range | 20.4 to 26.4 VDC |
| Power consumption | 20 W max. |
| Inrush current | 30 A max. (for cold start at room temperature) 20 ms max. |
| External power supply | None |
| Insulation resistance | No insulation between primary and secondary for DC power supply |
| Dielectric strength | No insulation between primary and secondary for DC power supply |
| Noise immunity | Conforms to IEC 61000-4-4. 2 kV (power supply line) |
| Vibration resistance | Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for 80 minutes each. Sweep time: 8 minutes × 10 sweeps = total time of 80 minutes) |
| Shock resistance | Conforms to JIS C60068-2-27. 147 m/s2 three times each in X, Y, and Z directions |
| Ambient operating temperature | 0 to 55°C |
| Ambient humidity | 10% to 90% (with no condensation) |
| Ambient operating environment | No corrosive gas |
| Ambient storage temperature | −20 to 75°C (Excluding battery.) |
| Power holding time | 2 ms min. |
Reach Us by Email for Omron PLC DC 24,18 Inputs, 12 Outputs CP1L-M30DR-D at Discounted Rates. Key Technical Features of CP1L-M30DR-D are 24 VDC power supply and Relay output. It has 18 inputs and 12 outputs, utilizing a Stored program method and Cyclic scan with immediate refreshing for control. Programming is done through a Ladder diagram with Maximum number of function block definitions: 128 Maximum number of instances: 256; Languages usable in function block definitions: Ladder diagrams, structured text (ST). The instruction length ranges 1 to 7 steps per instruction, with Approx. 500 (function codes: 3 digits) instructions available. It operates within a voltage range of 20.4 to 26.4 VDC and consumes 20 W max.. Navigate Your Needs with a Quote for your requirement of Omron PLC DC 24,18 Inputs, 12 Outputs. Our pricing and support are unrivaled, especially when compared to other Competitors.Reach Us by Email for Omron PLC DC 24,18 Inputs, 12 Outputs CP1L-M30DR-D at Discounted Rates. Key Technical Features of CP1L-M30DR-D are 24 VDC power supply and Relay output. It has 18 inputs and 12 outputs, utilizing a Stored program method and Cyclic scan with immediate refreshing for control. Programming is done through a Ladder diagram with Maximum number of function block definitions: 128 Maximum number of instances: 256; Languages usable in function block definitions: Ladder diagrams, structured text (ST). The instruction length ranges 1 to 7 steps per instruction, with Approx. 500 (function codes: 3 digits) instructions available. It operates within a voltage range of 20.4 to 26.4 VDC and consumes 20 W max.. Navigate Your Needs with a Quote for your requirement of Omron PLC DC 24,18 Inputs, 12 Outputs. Our pricing and support are unrivaled, especially when compared to other Competitors.
