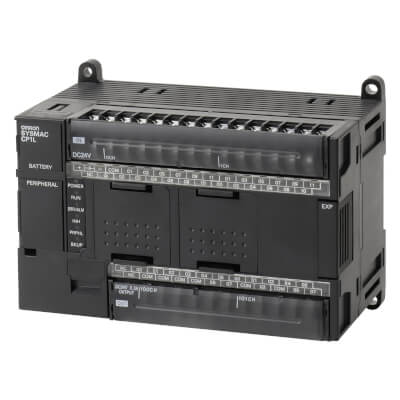

CP1L-M60DT1-D: Omron 24 VDC Programmable Logic ControllerCP1L-M60DT1-D: Omron 24 VDC Programmable Logic Controller
Technical specifications of Omron 24 VDC Programmable Logic Controller CP1L-M60DT1-D:
| Spec | Value |
|---|---|
| Power Supply | 24 VDC |
| Inputs | 36 |
| Outputs | 24 |
| Control method | Stored program method |
| Power consumption | 20 W max. |
Omron 24 VDC Programmable Logic Controller CP1L-M60DT1-D Technical Specifications:Omron 24 VDC Programmable Logic Controller CP1L-M60DT1-D Technical Specifications:
| Specification | Value |
|---|---|
| Power Supply | 24 VDC |
| Output method | Transistor output (sourcing) |
| Inputs | 36 |
| Outputs | 24 |
| Control method | Stored program method |
| I/O control method | Cyclic scan with immediate refreshing |
| Program language | Ladder diagram |
| Function blocks | Maximum number of function block definitions: 128 Maximum number of instances: 256; Languages usable in function block definitions: Ladder diagrams, structured text (ST) |
| Instruction length | 1 to 7 steps per instruction |
| Instructions | Approx. 500 (function codes: 3 digits) |
| Instruction execution time | Basic instructions: 0.55 μs min. Special instructions: 4.1 μs min |
| Common processing time | 0.4ms |
| Operating voltage range | 20.4 to 26.4 VDC |
| Power consumption | 20 W max. |
| Inrush current | 30 A max. (for cold start at room temperature) 20 ms max. |
| External power supply | None |
| Insulation resistance | No insulation between primary and secondary for DC power supply |
| Dielectric strength | No insulation between primary and secondary for DC power supply |
| Noise immunity | Conforms to IEC 61000-4-4. 2 kV (power supply line) |
| Vibration resistance | Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for 80 minutes each. Sweep time: 8 minutes × 10 sweeps = total time of 80 minutes) |
| Shock resistance | Conforms to JIS C60068-2-27. 147 m/s2 three times each in X, Y, and Z directions |
| Ambient operating temperature | 0 to 55°C |
| Ambient humidity | 10% to 90% (with no condensation) |
| Ambient operating environment | No corrosive gas |
| Ambient storage temperature | −20 to 75°C (Excluding battery.) |
| Power holding time | 2 ms min |
Ask for the Pricing of Omron 24 VDC Programmable Logic Controller CP1L-M60DT1-D at unbeatable prices. Detailed Specifications of CP1L-M60DT1-D features 24 VDC power supply and Transistor output (sourcing). It has 36 inputs and 24 outputs, utilizing a Stored program method and Cyclic scan with immediate refreshing for control. Programming is done through a Ladder diagram with Maximum number of function block definitions: 128 Maximum number of instances: 256; Languages usable in function block definitions: Ladder diagrams, structured text (ST). The instruction length ranges 1 to 7 steps per instruction, with Approx. 500 (function codes: 3 digits) instructions available. It operates within a voltage range of 20.4 to 26.4 VDC and consumes 20 W max.. Now's the Time to Secure a Quote for your requirement of Omron 24 VDC Programmable Logic Controller. We're committed to offering more favorable pricing and more responsive support than other Traders.Ask for the Pricing of Omron 24 VDC Programmable Logic Controller CP1L-M60DT1-D at unbeatable prices. Detailed Specifications of CP1L-M60DT1-D features 24 VDC power supply and Transistor output (sourcing). It has 36 inputs and 24 outputs, utilizing a Stored program method and Cyclic scan with immediate refreshing for control. Programming is done through a Ladder diagram with Maximum number of function block definitions: 128 Maximum number of instances: 256; Languages usable in function block definitions: Ladder diagrams, structured text (ST). The instruction length ranges 1 to 7 steps per instruction, with Approx. 500 (function codes: 3 digits) instructions available. It operates within a voltage range of 20.4 to 26.4 VDC and consumes 20 W max.. Now's the Time to Secure a Quote for your requirement of Omron 24 VDC Programmable Logic Controller. We're committed to offering more favorable pricing and more responsive support than other Traders.
