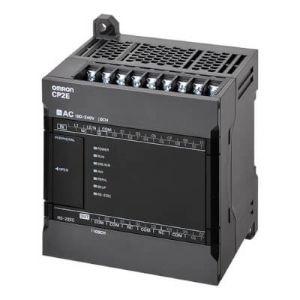

CP2E-E30DR-A: Omron PLC CPU Units with 30 points
Technical specifications of Omron PLC CPU Units with 30 points CP2E-E30DR-A:
| Spec | Value |
|---|---|
| Inputs | 18 points |
| Outputs | 12 points |
| Output type | Relay |
| Program capacity | 4K steps (FB capacity: 4K steps) |
| Supply voltage | 100 to 240 VAC 50/60 Hz |
Omron PLC CPU Units with 30 points CP2E-E30DR-A Technical Specifications:
| Specification | Value |
|---|---|
| Number of points | CPU Units with 30 points |
| Inputs | 18 points |
| Outputs | 12 points |
| Output type | Relay |
| Program capacity | 4K steps (FB capacity: 4K steps) |
| Data memory capacity | 4K words |
| Current consumption 5 VDC | 0.12 A |
| Current consumption 24 VDC | 0.07 A |
| Dimensions (H × D × W) | 90mm *1 × 80mm *2 × 130mm |
| Supply voltage | 100 to 240 VAC 50/60 Hz |
| Operating voltage range | 85 to 264 VAC |
| Power consumption | 50 VA/100 VAC max., 70 VA/240 VAC max. |
| Inrush current | 120 VAC, 20 A for 8 ms max. for cold start at room temperature 240 VAC, 40 A for 8 ms max. for cold start at room temperature |
| Insulation resistance | 20 MΩ min. (at 500 VDC) between the external AC, terminals and GR terminals |
| Power interrupt time | 10 ms min |
| Altitude | 2,000 m max |
| Atmosphere | No corrosive gas |
| Ambient humidity | 10% to 90% |
| Ambient operating temperature | 20 to 60°C |
| Ambient storage temperature | -20 to 75°C (excluding battery) |
| Weight | 580g max. |
Call us for of Omron PLC CPU Units with 30 points CP2E-E30DR-A at the best rates. Technical Attributes of CP2E-E30DR-A features CPU Units with 30 points, are 18 points inputs and 12 points Relay outputs. It features a program capacity of 4K steps (FB capacity: 4K steps) and a data memory capacity of 4K words. The PLC operates at 100 to 240 VAC 50/60 Hz with an operating voltage range of 85 to 264 VAC and a power consumption of 50 VA/100 VAC max., 70 VA/240 VAC max.. Its current consumption is 0.12 A at 5 VDC and 0.07 A at 24 VDC. The dimensions are 90mm *1 × 80mm *2 × 130mm. It has an insulation resistance of 20 MΩ min. (at 500 VDC) between the external AC, terminals and GR terminals, and can handle power interruptions of 10 ms min. at altitudes up to 2,000 m max with No corrosive gas. with a Quote for your requirement of Omron PLC CPU Units with 30 points. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
