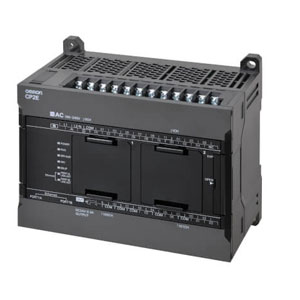

CP2E-N30DT1-D: Omron 12 Transistor Output PLC
Technical specifications of Omron 12 Transistor Output PLC CP2E-N30DT1-D:
| Spec | Value |
|---|---|
| Inputs | 18 points |
| Outputs | 12 points |
| Output type | Transistor (sourcing) |
| Program capacity | 10K steps (FB capacity: 10K steps) |
| Supply voltage | 24 VDC |
Omron 12 Transistor Output PLC CP2E-N30DT1-D Technical Specifications:
| Specification | Value |
|---|---|
| Number of points | CPU Units with 30 points |
| Inputs | 18 points |
| Outputs | 12 points |
| Output type | Transistor (sourcing) |
| Program capacity | 10K steps (FB capacity: 10K steps) |
| Data memory capacity | 16K words |
| Current consumption 5 VDC | 0.51 A |
| Current consumption 24 VDC | 0.03 A |
| Dimensions (H × D × W) | 90mm *1 × 80mm *2 × 130mm |
| Supply voltage | 24 VDC |
| Operating voltage range | 20.4 to 26.4 VDC |
| Power consumption | 20W max. |
| Inrush current | 24 VDC, 30A for 20 ms max. for cold start at room temperature |
| Insulation resistance | Not csolated between primary and secondary DC, power supplies |
| Power interrupt time | 2 ms min |
| Altitude | 2,000 m max |
| Atmosphere | No corrosive gas |
| Ambient humidity | 10% to 90% |
| Ambient operating temperature | 20 to 60°C |
| Ambient storage temperature | -20 to 75°C (excluding battery) |
| Weight | 580g max. |
Call us for of Omron 12 Transistor Output PLC CP2E-N30DT1-D at the best rates. Technical Attributes of CP2E-N30DT1-D features CPU Units with 30 points, are 18 points inputs and 12 points Transistor (sourcing) outputs. It features a program capacity of 10K steps (FB capacity: 10K steps) and a data memory capacity of 16K words. The PLC operates at 24 VDC with an operating voltage range of 20.4 to 26.4 VDC and a power consumption of 20W max.. Its current consumption is 0.51 A at 5 VDC and 0.03 A at 24 VDC. The dimensions are 90mm *1 × 80mm *2 × 130mm. It has an insulation resistance of Not csolated between primary and secondary DC, power supplies, and can handle power interruptions of 2 ms min. at altitudes up to 2,000 m max with No corrosive gas. with a Quote for your requirement of Omron 12 Transistor Output PLC . Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
