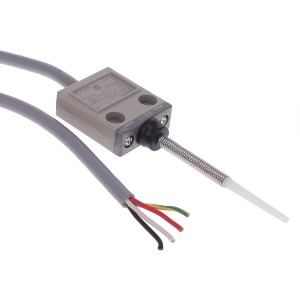

D4C-1350 : Omron D4C Compact Limit Switch in Chennai
Technical Specifications of Omron D4C Compact Limit Switch D4C-1350:
Shape/Structure: General-purpose Limit switches
Actuator: Plastic rod
Electrical ratings: 5 A at 250 VAC/ 4 A at 30 VDC
Contact form: SPDT
Ambient temperature: -10 to 70 ℃
Cable specifications: VCTF oil-resistant cable, 4 cores, 5 m
Degree of protection: IP67
Load: General load.
Omron D4C Compact Limit Switch D4C-1350 Technical Specifications:
|
Shape/Structure
|
General-purpose Limit switches |
| Ctuator | Plastic rod Resin rod |
| Electrical ratings | 5 A at 250 VAC/ 4 A at 30 VDC |
| Contact resistance (Initial value) | 400 mΩ max. |
| Contact form | SPDT |
| Load | General load |
| Inrush current | NC: 20 A max. NO: 10 A max. |
| Ambient temperature | Operating: -10 to 70 ℃ (with no icing) |
| Ambient humidity | 35 to 95% RH |
| Shock resistance | Destruction: 1,000 m/s2 max. |
| Durability | Electrical: 200,000 operations min. (5 A at 125 VAC) Mechanical: 10 million operations min. |
| Degree of protection | IP67 |
The Omron D4C Compact Limit Switch, a general-purpose limit switch featuring a plastic rod actuator, is designed to handle a variety of applications. With electrical ratings of 5 A at 250 VAC and 4 A at 30 VDC, and a contact form of SPDT, it operates efficiently in ambient temperatures ranging from -10 to 70 ℃. The switch is equipped with a VCTF oil-resistant cable, 4 cores, and a length of 5 m, ensuring robust and reliable connectivity. Additionally, it boasts an IP67 degree of protection, making it suitable for general load applications in demanding environments. In Chennai IndMALL offers the versatile Omron D4C-1350, highlighting its adaptability and durability for industrial use.
