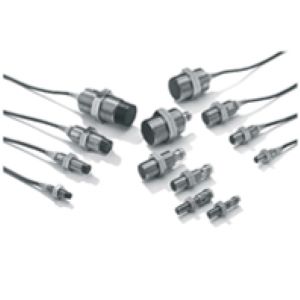

Omron E2A-M18KN16-M1-C1: M18 NPN Proximity Sensor
The technical specifications for the Omron M18 NPN Proximity Sensor E2A-M18KN16-M1-C1:
- Sensor Head: M18
- Mounting Type: Non-Flush/Non-shielded
- Sensing Distance: 16 mm
- Output Type: NPN
- Switching: NO
- Power Source: DC 3-wire
- Connection Method: M12 Connector
- Material housing Brass
Omron M18 NPN Proximity Sensor E2A-M18KN16-M1-C1 Technical Specifications:
| Sensor Head | M18 |
| Mounting type | Non-Flush |
| Sensing Distance | 16 mm |
| Output type | NPN |
| Switching | NO |
| Power source | DC 3-wire |
| Connection method | M12 connector (4-pole) |
| Standard sensing object | 48 × 48 × 1 mm |
| Barrel Length | Short body |
| Differential travel | Differential travel 10% max. of sensing distance |
| Voltage influence | ±1% max. of sensing distance in rated voltage range ±15% |
| Insulation resistance | 50 MΩ min. (at 500 VDC) between current carry parts and case |
| Overall Length | 53 mm |
| Thread Length | 39 mm |
| Ambient humidity | Operating: 35% to 95%, Storage: 35% to 95% |
| Power Supply Voltage | 12-24 VDC |
| Response Frequency | 400 Hz |
| Protection circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Short-circuit protection |
| Ambient air temperature | Operating: −40°C to 70°C, Storage: −40°C to 85°C (with no icing or condensation) |
| Current consumption | 10 mA max |
| Indicator | Operation indicator (Yellow LED) |
| Degree of protection | IP67/IP69K |
| Material housing | Nickel-Plated Brass |
Looking for the Omron E2A-M18KN16-M1-C1. This M18 NPN Proximity Sensor, has non-flush, non-shielded mounting, sensing distance up to 16 mm, Normally Open (NO) switching, it’s suitable for various applications. The sensor connects via an M12 connector and is powered by a DC 3-wire system. Its brass housing ensures durability. Get this reliable Omron sensor at IndMALL Automation for the best deal.
