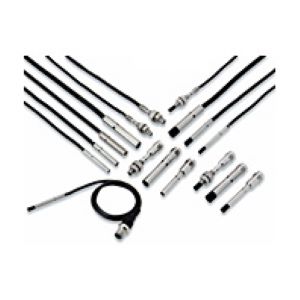

E2E-C04S12-MC-C2: Omron NPN NC Metal Sensor
Technical Specifications of Omron NPN NC Metal Sensor E2E-C04S12-MC-C2:
| Spec | Value |
|---|---|
| Sensing Head Size | 4 dia |
| Type | Shielded |
| Sensing Distance | 1.2 mm |
| Setting Distance | 0 to 0.84 mm |
Omron NPN NC Metal Sensor E2E-C04S12-MC-C2 Technical Specifications:
| Specification | Value |
|---|---|
| Sensing head size | 4 dia |
| Type | Shielded |
| Cable specifications | - |
| Sensing distance | 1.2 mm |
| Setting distance | 0 to 0.84 mm |
| Response frequency | 4 kHz |
| Sensing object | Ferrous metal (Sensitivity lowers with non-ferrous metals.) |
| Standard sensing object | Iron, 4 × 4 × 1 mm |
| Connection method | M8 Connector Models |
| Differential distance | 15% max. of sensing distance |
| Power supply voltage | 10 to 30 VDC ripple (p-p) 10% included |
| Current consumption | 10 mA max. |
| Control output (Switching capacity) | 100 mA max. |
| Control output (Residual voltage) | 2 V max. |
| Indicator | Operation indicator (yellow) |
| Control output (Output type) | NPN open collector |
| Protective circuit | Output short-cut protection Output reverse polarity protection Power supply reverse polarity protection Surge suppressor |
| Operation mode | NC |
| Wire color / pin arrangement | 1: +V, 3: 0 V, 4: Control output |
| Ambient temperature (Operating/Storage) | -25 to 70 ℃/-25 to 70 ℃ |
| Ambient humidity (Operating/Storage) | 35 to 95 %/35 to 95 % |
| Temperature influence | ±15% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃ |
| Voltage influence | ±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range |
| Insulation resistance | Between charged parts and the case: 50 MΩ min. at 500 VDC |
| Dielectric strength | Between charged parts and the case: 500 VAC 50/60 Hz 1 min |
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
| Shock resistance | Destruction: 500 m/s2 10 times each in X, Y, and Z directions |
| Degree of protection | IEC: IP67 Company standard: Oil-proof |
| Material | Case: SUS303 (EN1.4305) Sensing surface: Heat-resistant ABS resin Cable: PVC |
| Weight | Approx. 10 g |
