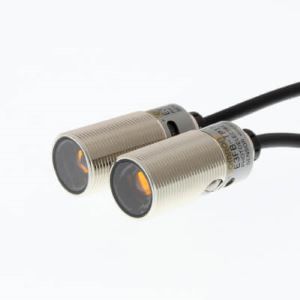

E3FB-TP11 2M: Omron Through-beam Emitter and Receiver
Technical Specifications of E3FB-TP11 2M Omron Through-beam Emitter and Receiver
| Spec | Value |
|---|---|
| Shape | Cylindrical axial |
| Sensing Method | Through-beam |
| Emitter Number | |
| Receiver Number | |
| Sensing Distance | 20m |
Omron Through-beam Emitter and Receiver E3FB-TP11 2M Technical Specifications:
| Specification | Value |
|---|---|
| Shape | Cylindrical axial |
| Sensing Method | Through-beam |
| Emitter Number | |
| Receiver Number | |
| Sensing Distance | 20m |
| Light Source Wavelength | Red LED |
| Connection Method | Pre Wired Cable,2M Length |
| Power Supply Voltage | 10 to 30 VDC |
| Output Configuration | PNP |
| Power Consumption | 40 mA max. (Emitter 25 mA max. Receiver 15 mA max.) |
| Operation Mode | Light-ON/Dark-ON |
| Thread Size | M18 |
| Length | 44mm |
| Response Time | 0.5ms |
| Degree of Protection | IP67/IP69K |
| Material Housing | Brass, nickel plated |
| Features | NA |
Give Us a Call for Omron Through-beam Emitter and Receiver E3FB-TP11 2M at the lowest pricing. In-depth Technical Analysis of E3FB-TP11 2M includes Through-beam, 20 m length, Pre-wired cable,2M length, IP67/IP69K, PNP, Brass,nickel plated material, M18 thread size, 0.5ms response time. Elevate Your Project with a Quote for your requirement of Omron Through-beam Emitter and Receiver. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
