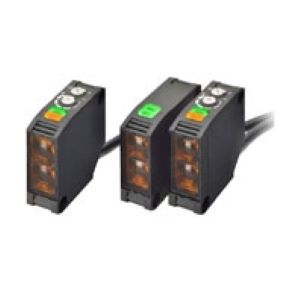

Omron E3JK Photoelectric Sensor Series

Features:

Long sensing distance that is approximately 8 times that of our conventional model (for the Through-beam and Diffuse-reflective models).
Improved visibility.
A red LED that makes the spot visible.
Large indicators can be seen even from a distance.
Improved operability.
Freely selectable power supply input (24 to 240 VDC, 24 to 240 VAC).
Models with infrared LEDs are also available.

Model No: E3JK-TR11-C 2M

Emitter: E3JK-TR11-L 2M; Receiver: E3JK-TR11-D 2M

Technical Specifications: Through-beam, Sensing Distance 40m, Red light, Pre-wired models(2m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC / VAC.

Model No: E3JK-TR12-C 2M

Emitter: E3JK-TR12-L 2M; Receiver: E3JK-TR12-D 2M

Technical Specifications: Through-beam, Sensing Distance 5m, Red light, Pre-wired models(2m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC / VAC.

Model No: E3JK-TR13-C 2M

Emitter: E3JK-TR13-L 2M; Receiver: E3JK-TR13-D 2M

Technical Specifications: Through-beam, Sensing Distance 40 m, Infrared light, Pre-wired (2 m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC / VAC.

Model No: E3JK-TR14-C 2M

Emitter: E3JK-TR14-L 2M; Receiver: E3JK-TR14-D 2M

Technical Specifications: Through-beam, Sensing Distance 5 m, Infrared light, Pre-wired(2 m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC / VAC.

Technical Specifications: Retro-reflective without M.S.R. function, Red light, Sensing distance When using the E39-R1: 100mm to 7m, Pre-wired (2m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC / VAC.

Model No: E3JK-RR13-C 2M

Technical Specifications: Retro-reflective without M.S.R. function, Infrared light, Sensing distance When using the E39-R1: 100 mm to 7 m, Pre-wired (2 m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC / VAC.

Model No: E3JK-RR12-C 2M

Technical Specifications: Retro-reflective with M.S.R. function, Red light, Sensing distance When using the E39-R1: 100mm to 6m, Pre-wired (2m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC / VAC.

Model No: E3JK-DR11-C 2M

Technical Specifications: Diffuse-reflective, Red light, Sensing Distance 2.5m, Pre-wired models(2m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC / VAC.

Model No: E3JK-DR12-C 2M

Technical Specifications: Diffuse-reflective, Red light, Sensing Distance 300mm, Pre-wired models(2m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC / VAC.

Model No: E3JK-DR13-C 2M

Technical Specifications: Diffuse-reflective, Infrared light, Sensing Distance 2.5 m, Pre-wired (2 m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC / VAC.

Model No: E3JK-DR14-C 2M

Technical Specifications: Diffuse-reflective, Infrared light, Sensing Distance 300 mm, Pre-wired (2 m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC / VAC.

Model No: E3JK-TR11 2M

Emitter: E3JK-TR11-L 2M; Receiver: E3JK-TR11-D 2M

Technical Specifications: Through-beam, Sensing Distance 40m, Red light, Pre-wired models(2m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC.

Model No: E3JK-TR12 2M

Emitter: E3JK-TR12-L 2M; Receiver: E3JK-TR12-D 2M

Technical Specifications: Through-beam, Sensing Distance 5m, Red light, Pre-wired models(2m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC.

Model No: E3JK-TR13 2M

Emitter: E3JK-TR13-L 2M; Receiver: E3JK-TR13-D 2M

Technical Specifications: Through-beam, Sensing Distance 40 m, Infrared light, Pre-wired (2 m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC.

Model No: E3JK-TR14 2M

Emitter: E3JK-TR14-L 2M; Receiver: E3JK-TR14-D 2M

Technical Specifications: Through-beam, Sensing Distance 5 m, Infrared light, Pre-wired(2 m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC.

Model No: E3JK-RR11 2M

Technical Specifications: Retro-reflective without M.S.R. function, Red light, Sensing distance When using the E39-R1: 100mm to 7m, Pre-wired (2m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC.

Model No: E3JK-RR13 2M

Technical Specifications: Retro-reflective without M.S.R. function, Infrared light, Sensing distance When using the E39-R1: 100 mm to 7 m, Pre-wired (2 m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC.

Model No: E3JK-RR12 2M

Technical Specifications: Retro-reflective with M.S.R. function, Red light, Sensing distance When using the E39-R1: 100mm to 6m, Pre-wired (2m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC

Model No: E3JK-DR11 2M

Technical Specifications: Diffuse-reflective, Red light, Sensing Distance 2.5m, Pre-wired models(2m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC.

Model No: E3JK-DR12 2M

Technical Specifications: Diffuse-reflective, Red light, Sensing Distance 300mm, Pre-wired models(2m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC

Model No: E3JK-DR13 2M

Technical Specifications: Diffuse-reflective, Infrared light, Sensing Distance 2.5 m, Pre-wired (2 m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC.

Model No: E3JK-DR14 2M

Technical Specifications: Diffuse-reflective, Infrared light, Sensing Distance 300 mm, Pre-wired (2 m), Relay output, AC/DC Power Supply selectable, 24 to 240 VDC

Model No: E3JK-TN11 2M

Emitter: E3JK-TN11-L 2M; Receiver: E3JK-TN11-D 2M

Technical Specifications: Through-beam, Sensing Distance 40m, Red light, Pre-wired models(2m), NPN, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-TP11 2M

Emitter: E3JK-TP11-L 2M; Receiver: E3JK-TP11-D 2M

Technical Specifications: Through-beam, Sensing Distance 40m, Red light, Pre-wired models(2m), PNP, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-TN12 2M

Emitter: E3JK-TN12-L 2M; Receiver: E3JK-TN12-D 2M

Technical Specifications: Through-beam, Sensing Distance 5m, Red light, Pre-wired models(2m), NPN, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-TP12 2M

Emitter: E3JK-TP12-L 2M; Receiver: E3JK-TP12-D 2M

Technical Specifications: Through-beam, Sensing Distance 5m, Red light, Pre-wired models(2m), PNP, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-TN13 2M

Emitter: E3JK-TN13-L 2M; Receiver: E3JK-TN13-D 2M

Technical Specifications: Through-beam, Sensing Distance 40 m, Infrared light, Pre-wired models(2m), NPN, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-TP13 2M

Emitter: E3JK-TP13-L 2M; Receiver: E3JK-TP13-D 2M

Technical Specifications: Through-beam, Sensing Distance 40 m, Infrared light, Pre-wired models(2m), PNP, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-TN14 2M

Emitter: E3JK-TN14-L 2M; Receiver: E3JK-TN14-D 2M

Technical Specifications: Through-beam, Sensing Distance 5 m, Infrared light, Pre-wired models(2m), NPN, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-TP14 2M

Emitter: E3JK-TP14-L 2M; Receiver: E3JK-TP14-D 2M

Technical Specifications: Through-beam, Sensing Distance 5 m, Infrared light, Pre-wired models(2 m), PNP, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-RN11 2M

Technical Specifications: Retro-reflective without M.S.R. function, Red light, Sensing distance When using the E39-R1: 100mm to 7m, Pre-wired models(2m), NPN, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-RP11 2M

Technical Specifications: Retro-reflective without M.S.R. function, Red light, Sensing distance When using the E39-R1: 100mm to 7m, Pre-wired models(2m), PNP, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-RN13 2M

Technical Specifications: Retro-reflective without M.S.R. function, Infrared light, Sensing distance When using the E39-R1: 100mm to 7m, Pre-wired models(2m), NPN, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-RP13 2M

Technical Specifications: Retro-reflective without M.S.R. function, Infrared light, Sensing distance When using the E39-R1: 100mm to 7m, Pre-wired models(2m), PNP, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-RN12 2M

Technical Specifications: Retro-reflective with M.S.R. function, Red light, Sensing distance When using the E39-R1:100mm to 6m, Pre-wired models(2m), NPN, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-RP12 2M

Technical Specifications: Retro-reflective with M.S.R. function, Red light, Sensing distance When using the E39-R1: 100mm to 6m, Pre-wired models(2m), PNP, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-DN11 2M

Technical Specifications: Diffuse-reflective, Red light, Sensing Distance 2.5m, Pre-wired models(2m), NPN, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-DP11 2M

Technical Specifications: Diffuse-reflective, Red light, Sensing Distance 2.5m, Pre-wired models(2m), PNP, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-DN12 2M

Technical Specifications: Diffuse-reflective, Red light, Sensing Distance 300mm, Pre-wired models(2m), NPN, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-DP12 2M

Technical Specifications: Diffuse-reflective, Red light, Sensing Distance 300mm, Pre-wired models(2m), PNP, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-DN13 2M

Technical Specifications: Diffuse-reflective, Infrared light, Sensing Distance 2.5m, Pre-wired models(2m), NPN, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-DP13 2M

Technical Specifications: Diffuse-reflective, Infrared light, Sensing Distance 2.5m, Pre-wired models(2m), PNP, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-DN14 2M

Technical Specifications: Diffuse-reflective, Infrared light, Sensing Distance 300mm, Pre-wired models(2m), NPN, DC Power Supply, 10 to 30 VDC.

Model No: E3JK-DP14 2M

Technical Specifications: Diffuse-reflective, Infrared light, Sensing Distance 300mm, Pre-wired models(2m), PNP, DC Power Supply, 10 to 30 VDC.
