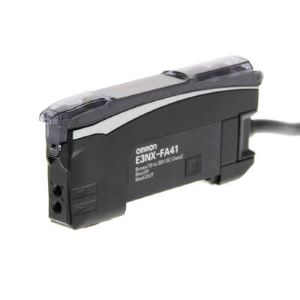

E3NX-FAH41 2M: Omron 2M Cable Infrared LED Fiber Amplifier
Technical Specifications of Omron 2M Cable Infrared LED Fiber Amplifier E3NX-FAH41 2M:
| Spec | Value |
|---|---|
| Shape | Cuboid, rail mounting |
| Sensing Method | Fiber amplifier |
| Application | Object detection |
| Connection Method | Pre Wired Cable, 2M Length |
| Output | PNP |
Omron 2M Cable Infrared LED Fiber Amplifier E3NX-FAH41 2M Technical Specifications:
| Specification | Value |
|---|---|
| Shape | Cuboid, rail mounting |
| Sensing Method | Fiber amplifier |
| Application | Object detection |
| Connection Method | Pre Wired Cable, 2M Length |
| Output | PNP |
| Light Source | Infrared LED (870nm) |
| Operation Mode | Dark-ON, Light-ON |
| Power Supply Voltage | 10-30 VDC |
| Function | Timer |
| Response Time | 0.03 ms |
| Material Housing | Polycarbonate |
| Number of channels | 1 |
| Features | Bank function |
| Number of Digital Outputs | 1 |
| Degree of Protection | IP50 |
| Weight | Approx. 115 g/ approx. 75 g |
Object detection
