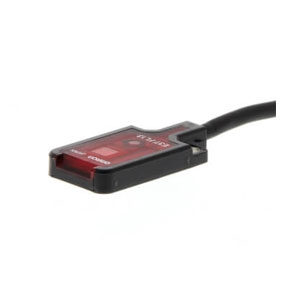

E3T-FD12M 2M: Omron 2M NPN Dark-ON Diffuse Sensor
Technical Specifications of Omron 2M NPN Dark-ON Diffuse Sensor E3T-FD12M 2M:
| Spec | Value |
|---|---|
| Shape | Rectangular type |
| Sensing Method | Diffuse-reflective |
| Sensing Distance | 5 to 30 mm |
| Connection Method | Pre-wired cable length 2m |
Omron 2M NPN Dark-ON Diffuse Sensor E3T-FD12M 2M Technical Specifications:
| Specification | Value |
|---|---|
| Shape | Rectangular type |
| Sensing Method | Diffuse-reflective |
| Sensing Distance | 5 to 30 mm |
| Light Source (wavelength) | Red LED |
| Connection Method | Pre-wired cable length 2m |
| Power Supply Voltage | 12 to 24 VDC |
| Output Configuration | NPN open collector |
| Current Consumption | 20 mA max. |
| Operation Mode | Dark-ON |
| Response time | 1 ms max. |
| Degree of protection | IP67 |
| Material Case | Polybutylene terephthalate |
| Material Lens | Denatured Polyarylate |
| Weight | 20g |
Obtain a Quote for Omron 2M NPN Dark-ON Diffuse Sensor, E3T-FD12M 2M at attractive prices. Core System Specifications of E3T-FD12M 2M are Rectangular type, Diffuse-reflective, 5 to 30 mm, Red LED, Pre-wired cable length 2m, 12 to 24 VDC, NPN open collector & 20 mA max.. It functionality Includes 1 ms max., Dark-ON & IP67. Elevate Your Project with a Quote for your requirement of Omron 2M NPN Dark-ON Diffuse Sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
