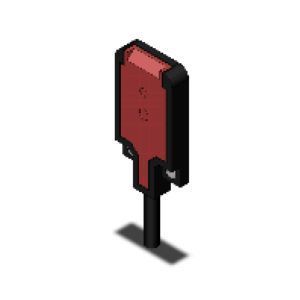

E3T-FT22F 2M: Omron 300mm Sensing Flat Through-beam Sensor
Technical Specifications of Omron 300mm Sensing Flat Through-beam Sensor E3T-FT22F 2M:
| Spec | Value |
|---|---|
| Shape | Rectangular type |
| Sensing Method | Through-beam |
| Sensing Distance | 300mm |
| Connection Method | Pre-wired cable length 2m |
Omron 300mm Sensing Flat Through-beam Sensor E3T-FT22F 2M Technical Specifications:
| Specification | Value |
|---|---|
| Shape | Rectangular type |
| Sensing Method | Through-beam |
| Sensing Distance | 300mm |
| Light Source (wavelength) | Red LED |
| Connection Method | Pre-wired cable length 2m |
| Power Supply Voltage | 12 to 24 VDC |
| Output Configuration | NPN open collector |
| Current Consumption | 30 mA max. (Emitter 10 mA max., Receiver 20 mA max.) |
| Operation Mode | Dark-ON |
| Response time | 1 ms max. |
| Degree of protection | IP67 |
| Material Case | Polybutylene terephthalate |
| Material Lens | Denatured Polyarylate |
| Weight | 40g |
Send Your Inquiry for Omron 300mm Sensing Flat Through-beam Sensor, E3T-FT22F 2M with cost-effective solutions. Essential Technical Specs of E3T-FT22F 2M cover Rectangular type, Through-beam , 300mm, Red LED, Pre-wired cable length 2m, 12 to 24 VDC, NPN open collector & 30 mA max. (Emitter 10 mA max., Receiver 20 mA max.). It also delivers 1 ms max., Dark-ON & IP67. Capture the Best Deal with a Quote for your requirement of Omron 300mm Sensing Flat Through-beam Sensor. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
