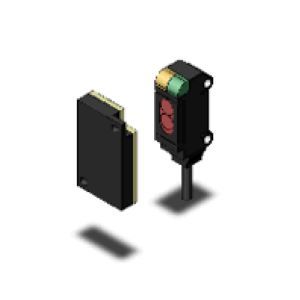

E3T-SR44 2M: Omron 100mm Mounting Sensor
Technical Specifications of Omron 100mm Mounting Sensor E3T-SR44 2M:
| Spec | Value |
|---|---|
| Shape | Square type |
| Sensing Method | Retro-reflective |
| Sensing Distance | 30 to 200 mm |
| Connection Method | Pre-wired cable length 2m |
Omron 100mm Mounting Sensor E3T-SR44 2M Technical Specifications:
| Specification | Value |
|---|---|
| Shape | Square type |
| Sensing Method | Retro-reflective |
| Sensing Distance | 30 to 200 mm |
| Light Source (wavelength) | Red LED |
| Connection Method | Pre-wired cable length 2m |
| Power Supply Voltage | 12 to 24 VDC |
| Output Configuration | PNP open collector |
| Current Consumption | 20 mA max |
| Operation Mode | Dark-ON |
| Response time | 1 ms max. |
| Degree of protection | IP67 |
| Material Case | Polybutylene terephthalate |
| Material Lens | Denatured Polyarylate |
| Weight | 20g |
IndMALL Offers Omron 100mm Mounting Sensor, E3T-SR44 2M at economical Choices. Product Tech Specs of E3T-SR44 2M includes Square type, Retro-reflective , 30 to 200 mm, Red LED, Pre-wired cable length 2m, 12 to 24 VDC, PNP open collector & 20 mA max. And It Includes 1 ms max., Dark-ON & IP67. Now's the Time to Secure a Quote for your requirement of Omron 100mm Mounting Sensor. Trust in our superior pricing and more dedicated support over other Distributors.
