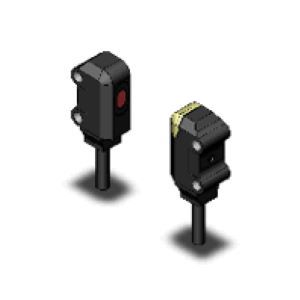

E3T-ST24 2M: Omron 300mm PNP Dark-On Photo Sensor
Technical Specifications of Omron 300mm PNP Dark-On Photo Sensor E3T-ST24 2M:
| Spec | Value |
|---|---|
| Shape | Square type |
| Sensing Method | Through-beam |
| Sensing Distance | 300mm |
| Connection Method | Pre-wired cable length 2m |
Omron 300mm PNP Dark-On Photo Sensor E3T-ST24 2M Technical Specifications:
| Specification | Value |
|---|---|
| Shape | Square type |
| Sensing Method | Through-beam |
| Sensing Distance | 300mm |
| Light Source (wavelength) | Red LED |
| Connection Method | Pre-wired cable length 2m |
| Power Supply Voltage | 12 to 24 VDC |
| Output Configuration | PNP open collector |
| Current Consumption | 30 mA max. (Emitter 10 mA max., Receiver 20 mA max.) |
| Operation Mode | Dark-ON |
| Response time | 1 ms max. |
| Degree of protection | IP67 |
| Material Case | Polybutylene terephthalate |
| Material Lens | Denatured Polyarylate |
| Weight | 40g |
Mail Us for your needs in Omron 300mm PNP Dark-On Photo Sensor, E3T-ST24 2M with budget-friendly prices. The Main Technical Parameters of E3T-ST24 2M include Square type, Through-beam, 300mm, Red LED, Pre-wired cable length 2m, 12 to 24 VDC, PNP open collector & 30 mA max. (Emitter 10 mA max., Receiver 20 mA max.). Additionally, it provides 1 ms max., Dark-ON & IP67. Customize Your Experience with a Quote for your requirement of Omron 300mm PNP Dark-On Photo Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
