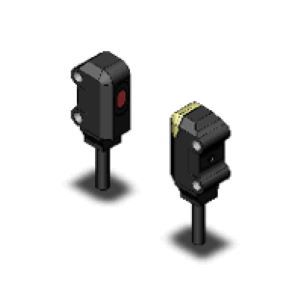

E3T-ST34 5M: Omron Pre-wired 5M Cable Through-beam Sensor
Technical Specifications of Omron Pre-wired 5M Cable Through-beam Sensor E3T-ST34 5M:
| Spec | Value |
|---|---|
| Shape | Square type |
| Sensing Method | Through-beam |
| Sensing Distance | 2m |
| Connection Method | Pre-wired cable length 5m |
Omron Pre-wired 5M Cable Through-beam Sensor E3T-ST34 5M Technical Specifications:
| Specification | Value |
|---|---|
| Shape | Square type |
| Sensing Method | Through-beam |
| Sensing Distance | 2m |
| Light Source (wavelength) | Red LED |
| Connection Method | Pre-wired cable length 5m |
| Power Supply Voltage | 12 to 24 VDC |
| Output Configuration | PNP open collector |
| Current Consumption | 30 mA max. (Emitter 10 mA max., Receiver 20 mA max.) |
| Operation Mode | Dark-ON |
| Response time | 1 ms max. |
| Degree of protection | IP67 |
| Material Case | Polybutylene terephthalate |
| Material Lens | Denatured Polyarylate |
| Weight | 40g |
Give Us a Call for Omron Pre-wired 5M Cable Through-beam Sensor, E3T-ST34 5M at the lowest pricing. In-depth Technical Analysis of E3T-ST34 5M includes Square type, Through-beam, 2m, Red LED, Pre-wired cable length 5m, 12 to 24 VDC, PNP open collector & 30 mA max. (Emitter 10 mA max., Receiver 20 mA max.). It functionality Includes 1 ms max., Dark-ON & IP67. Elevate Your Project with a Quote for your requirement of Omron Pre-wired 5M Cable Through-beam Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
