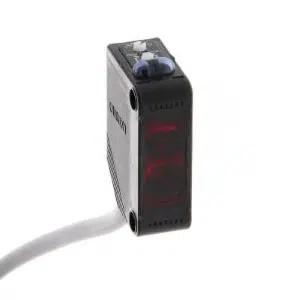

E3Z-D62 5M: Omron Diffuse 5m NPN Sensor
Technical Specifications of Omron Diffuse 5m NPN Sensor E3Z-D62 5M:
| Spec | Value |
|---|---|
| Shape | Square |
| Sensing Method | Diffuse-reflective |
| Sensing Distance | 1m |
| Connection Method | Pre Wired Cable, 5 Length |
Omron Diffuse 5m NPN Sensor E3Z-D62 5M Technical Specifications:
| Specification | Value |
|---|---|
| Shape | Square |
| Sensing Method | Diffuse-reflective |
| Sensing Distance | 1m |
| Light Source (wavelength) | Infrared LED (870 nm) |
| Connection Method | Pre Wired Cable, 5 Length |
| Power Supply Voltage | 12 to 24 VDC |
| Output Configuration | NPN |
| Current Consumption | 30 mA max. |
| Operation Mode | Light-ON/Dark-ON selectable |
| Response time | 1 ms max. |
| Degree of protection | IEC: IP67 |
| Material Case | Polybutylene terephthalate (PBT) |
| Material Lens | Denatured Polyarylate |
| Features | Transparent detection |
| Weight | 65g |
Send Your Inquiry for Omron Diffuse 5m NPN Sensor, E3Z-D62 5M with cost-effective solutions. Essential Technical Specs of E3Z-D62 5M cover E3Z-D62 5M, Square , Diffuse-reflective, 1m, Infrared LED (870 nm), Pre Wired Cable, 5 Length, 12 to 24 VDC & NPN. It also delivers Light-ON/Dark-ON selectable, 30 mA max. & 1 ms max.. Capture the Best Deal with a Quote for your requirement of Omron Diffuse 5m NPN Sensor. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
