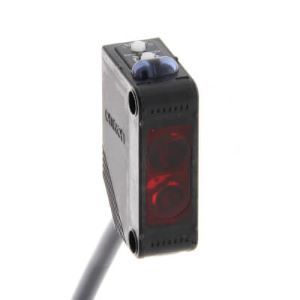

E3Z-L68: Omron Limited Reflective Transparent Sensor
Technical Specifications of Omron Limited Reflective Transparent Sensor E3Z-L68:
| Spec | Value |
|---|---|
| Shape | Square type |
| Sensing Method | Distance-setting |
| Sensing Distance | 20 to 200 mm |
| Connection Method | Pre Wired Cable, 2m Length |
Omron Limited Reflective Transparent Sensor E3Z-L68 Technical Specifications:
| Specification | Value |
|---|---|
| Shape | Square type |
| Sensing Method | Distance-setting |
| Sensing Distance | 20 to 200 mm |
| Light Source (wavelength) | Red LED (670 nm) |
| Connection Method | Pre Wired Cable, 2m Length |
| Power Supply Voltage | 12 to 24 VDC |
| Output Configuration | NPN |
| Current Consumption | 30 mA max. |
| Operation Mode | Light-ON/Dark-ON selectable |
| Response time | 1 ms max. |
| Degree of protection | IEC: IP67 |
| Material Case | Polybutylene terephthalate (PBT) |
| Material Lens | Denatured Polyarylate |
| Features | Transparent detection |
| Weight | 65g |
Send Your Inquiry for Omron Limited Reflective Transparent Sensor, E3Z-L68 with cost-effective solutions. Essential Technical Specs of E3Z-L68 cover E3Z-L68, Square type, Distance-setting, 20 to 200 mm, Red LED (670 nm), Pre Wired Cable, 2m Length, 12 to 24 VDC & NPN. It also delivers Light-ON/Dark-ON selectable, 30 mA max. & 1 ms max.. Capture the Best Deal with a Quote for your requirement of Omron Limited Reflective Transparent Sensor. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
