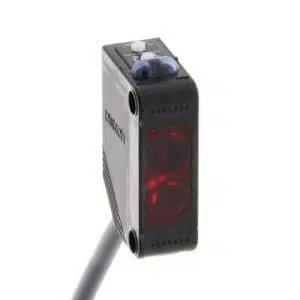

E3Z-L83 2M: Omron 30±20mm Limited-reflective Sensor
Technical Specifications of Omron 30±20mm Limited-reflective Sensor E3Z-L83 2M:
| Spec | Value |
|---|---|
| Shape | Square type |
| Sensing Method | Distance-setting |
| Sensing Distance | 20 to 300mm |
| Connection Method | Pre Wired Cable, 2m Length |
Omron 30±20mm Limited-reflective Sensor E3Z-L83 2M Technical Specifications:
| Specification | Value |
|---|---|
| Shape | Square type |
| Sensing Method | Distance-setting |
| Sensing Distance | 20 to 300mm |
| Light Source (wavelength) | Red LED (670 nm) |
| Connection Method | Pre Wired Cable, 2m Length |
| Power Supply Voltage | 12 to 24 VDC |
| Output Configuration | PNP |
| Current Consumption | 30 mA max. |
| Operation Mode | Light-ON/Dark-ON selectable |
| Response time | 1 ms max. |
| Degree of protection | IEC: IP67 |
| Material Case | Polybutylene terephthalate (PBT) |
| Material Lens | Denatured Polyarylate |
| Features | Transparent detection |
| Weight | 65g |
IndMALL Offers Omron 30±20mm Limited-reflective Sensor, E3Z-L83 2M at economical Choices. Product Tech Specs of E3Z-L83 2M includes E3Z-L83 2M, Square type, Distance-setting, 20 to 300mm, Red LED (670 nm), Pre Wired Cable, 2m Length, 12 to 24 VDC & PNP. And It Includes Light-ON/Dark-ON selectable, 30 mA max. & 1 ms max.. Now's the Time to Secure a Quote for your requirement of Omron 30±20mm Limited-reflective Sensor. Trust in our superior pricing and more dedicated support over other Distributors.
