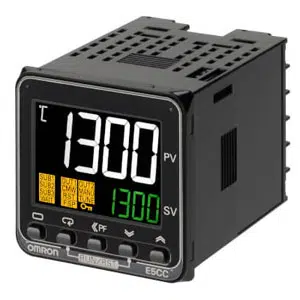

E5CC-RW0AUM-000: Omron E5CC PID Temperature Controller
The Omron E5CC PID Temperature Controller E5CC-RW0AUM-000 Technical Specifications are
- Size: DIN48 x 48
- Control: 2-PID or ON/OFF (with auto-tuning)
- Input Points: 1
- Analog Inputs: Various voltage and current ranges
- Control Outputs: 1 point (Relay)
- Display: 11-segment digital with indicators
- Settings: Digital via front panel keys
- Power supply voltage: 100-240 VAC (50/60 Hz)
- Power Consumption: 5.2 VA max.
- Terminal: Plug-in
Omron E5CC PID Temperature Controller E5CC-RW1AUM-000 Technical Specifications:
Size | DIN48 x 48 |
Control Method | ON/OFF control or 2-PID control (with auto-tuning) |
Number of input points | 1 point |
Temperature input type | Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 ℃, 60 to 120 ℃, 115 to 165 ℃, 140 to 260 ℃ |
Analog input type | Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, 0 to 10 V, 0 to 50 mV |
Number of total control output | 1 point |
Control output 1 | Relay Output |
Control output 2 | None |
Indication method | 11-segment digital display and individual indicators |
Setting Method | Digital setting using front panel keys |
Power supply voltage | 100 to 240 VAC (50/60 Hz) |
Allowable voltage variable range | 85 to 110% of the power supply voltage |
Power consumption | 5.2 VA max. (at 100 to 240 VAC) |
Terminal | Plug-in |
Looking for the Omron E5CC PID Temperature Controller E5CC-RW0AUM-000 is an excellent choice. It comes in a convenient DIN48 x 48 size with a plug-in terminal. This controller is versatile, supporting inputs like thermocouples and platinum resistance thermometers. It features a reliable relay output and operates on 100 to 240 VAC power. You can choose between ON/OFF control or 2-PID control with auto-tuning for precise temperature management. Settings are easily made using front panel keys, and it include an 11-segment digital display for clear readings. Find this controller at great prices at IndMALL Automation.
