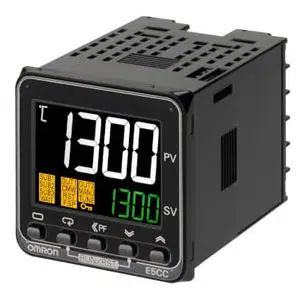

Omron E5CC Temperature Controller
Features:
- Display: Large white PV display with a height of 15.2 mm, with 4 digits for PV and 4 digits for SV
- Input: Universal input (thermocouple, platinum resistance thermometer, analog inputs)
- Control output: Relay, voltage pulse, current, linear voltage, or SSR driver output
- Alarm output: Up to 3 outputs (relay or voltage pulse)
- Communications: RS-485 (Modbus-RTU), or E5CN/E5EN communication unit
- Power supply: 100-240VAC or 24VAC/VDC
- Size: 48 x 48 mm or 48 x 96 mm
Model No: E5CC-RX2ASM-800
Technical Specifications: 48 × 48 mm, Control Output: Relay output, Power supply Voltage: 100 to 240 VAC
Model No: E5CC-RW0AUM-000
Technical Specifications: Size: DIN48 x 48; Control Output: Relay Output, None; Power Supply Voltage: 100 to 240 VAC (50/60 Hz); Terminal: Plug-in
Model No: E5CC-QX0AUM-000
Technical Specifications: Size: DIN (48 x 48 mm); Power supply voltage: 100 to 240 VAC (50/60 Hz); Control output: Voltage output (for driving SSR)/None; Terminal type: Plug-in.
Model No: E5CC-QX1AUM-000
Technical Specifications: Size: DIN (48 x 48 mm); Number of input points: 1 point; Power supply voltage: 100 to 240 VAC (50/60 Hz); Control output: Linear current output/None; Terminal type: Plug-in
Model No: E5CC-CX2AUM-000
Technical Specifications: Size: DIN (48 x 48 mm); Functions: ON/OFF control; Power supply voltage: 100 to 240 VAC (50/60 Hz); Control output: Linear current output/None; Terminal: Plug-in
Model No: E5CC-QX2AUM-000
Technical Specifications: Size: DIN48 x 48; Control Output: Voltage Output, None; Power Supply Voltage: 100 to 240 VAC (50/60 Hz); Terminal: Plug-in
Model No: E5CC-RW2DUM-000
Technical Specifications: Size: DIN (48 x 48 mm); Power supply voltage: 24VAC (50/60 Hz) 24VDC; Control output: Relay Output None; Terminal type: Plug-in.
Model No: E5CC-QX1AUM-000
Technical Specifications: Size: 1/16 DIN (48 x 48 mm); Control output: Relay; Functions: ON/OFF control, PID control; Terminal: Screw; Power supply voltage: 100 to 240 VAC.
Model No: E5CC-RW1AUM-000
Technical Specifications: Size: DIN (48 x 48 mm); Power supply voltage: 100 to 240 VAC (50/60 Hz); Control output: Relay Output, None; Terminal type: Plug-in.
Model No: E5CC-RW2AUM-000
Technical Specifications: Size: DIN (48 x 48 mm); Functions: ON/OFF control, PID control; Power supply voltage: 100 to 240 VAC (50/60 Hz); Control output: Relay Output; Terminal: Plug-in.
