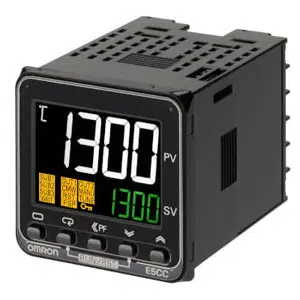

E5CD-CX2A6M-000: 48 x 48 mm Digital Temperature Controller
The Technical Specifications of Omron 48 x 48 mm Digital Temperature Controller E5CD-CX2A6M-000:
- Size: DIN (48 x 48 mm)
- Output Type: Linear current output
- Number of input points: 1 point
- Functions: ON/OFF control, PID control
- Terminal type: Screw terminal Block Type
- Number of Control Points: 1
- Power Supply voltage: 24 VAC/DC
Omron 48 x 48 mm Digital Temperature Controller E5CD-CX2A6M-000 Technical Specifications:
| Size | DIN48 x 48 |
| Control Method | ON/OFF control or 2-PID control (with auto-tuning) |
| Number of input points | 1 point |
| Temperature input type | Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 ℃, 60 to 120 ℃, 115 to 165 ℃, 140 to 260 ℃ |
| Analog input type | Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, 0 to 10 V, 0 to 50 mV |
| Number of total control output | 1 point |
| Control output 1 | Linear current output |
| Control output 2 | None |
| Indication method | 11-segment digital display and individual indicators |
| Setting Method | Digital setting using front panel keys |
| Power supply voltage | 100 to 240 VAC |
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Power consumption | 5.2 VA max. (at 100 to 240 VAC) |
| Terminal | Screw terminal blocks |
Are you looking for the Omron 48 x 48 mm Digital Temperature Controller E5CD-CX2A6M-000? With a DIN size of 48 x 48 mm, offering a linear current output. Designed for ON/OFF control and PID control, it features a screw terminal block type for easy installation. With one input point and powered by 24 VAC/DC, this controller ensures precise temperature management. IndMALL Automation guarantees the best rates for Omron Temperature Controllers.
