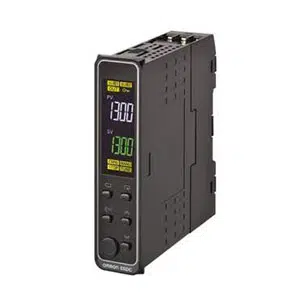

Omron E5DC-QX2DSM-000: PID Temp Controller
The Omron E5DC-QX2DSM-000 PID Temp Controller Technical Specifications are:
- Shape: 22.5 mm wide
- Terminal-type: Screw terminal block
- Control method: ON/OFF control or 2-PID control
- Control output 1: Voltage output (for driving SSR)
- Control output 2: None
- Number of total auxiliary output: 2 point
- Power supply voltage: 24 VAC (50/60 Hz) 24 VDC
Omron E5DC-QX2DSM-000 PID Temp Controller Technical Specifications:
| Size | 85 × 22.5 mm |
| Control Method | ON/OFF control or 2-PID control (with auto-tuning) |
| Number of input points | 1 point |
| Temperature input type | Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 ℃, 60 to 120 ℃, 115 to 165 ℃, 140 to 260 ℃ |
| Input type | Thermocouple/Platinum resistance thermometer/Infrared Thermosensor/Analog input |
| Analog input type | Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V |
| Number of total control output | 1 point |
| Control output 1 | Voltage output (for driving SSR) |
| Control output 2 | None |
| Number of total auxiliary output | 2 point |
| Indication method | 11-segment digital display and individual indicators |
| Setting Method | Digital setting using front panel keys |
| Power supply voltage | 24 VAC (50/60 Hz) 24 VDC |
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Power consumption | 4.9 VA max. (at 100 to 240 VAC) |
| Ambient temperature (Operating) | -10 to 55 ℃ (with no freezing or condensation) For a 3-year warranty with standard mounting: -10 to 50 ℃ (with no freezing or condensation) |
| Ambient temperature (Storage) | -25 to 65 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 25 to 85% |
| Degree of protection | Main unit: IP20, Terminal unit: IP00 |
| Terminal type | Screw terminal block |
| Case color | Black |
Are you searching for the Omron E5DC-QX2DSM-000 PID Temperature Controller? This controller is 22.5 mm wide and features a screw terminal block. It’s designed to work with thermocouples, platinum resistance thermometers, infrared thermosensors, and analog inputs. It includes a voltage output for driving SSRs and has two auxiliary outputs. Operating on 24 VAC (50/60 Hz) or 24 VDC, it’s perfect for various applications. IndMALL Automation ensures the best prices for this Omron Temperature Controller.
