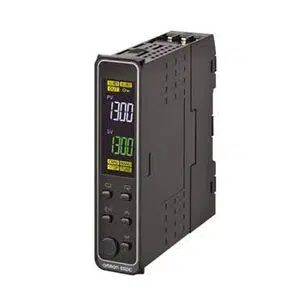

E5DC-RX0ASM-015: Omron 24VDC Temperature Controller
The Technical Specifications of the Omron 24VDC Temperature Controller E5DC-RX0ASM-015:
- Shape 22.5 mm wide
- Terminal-type: Screw terminal block
- Control output 1: Relay output
- Control output 2: None
- Power supply voltage: 100 to 240 VAC (50/60 Hz)
- Control method: ON/OFF or 2-PID control
- Case color: Black
Omron 24VDC Temperature Controller E5DC-RX0ASM-015 Technical Specifications:
| Size | 85 × 22.5 mm |
| Control Method | ON/OFF control or 2-PID control (with auto-tuning) |
| Number of input points | 1 point |
| Temperature input type | Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 ℃, 60 to 120 ℃, 115 to 165 ℃, 140 to 260 ℃ |
| Analog input type | Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V |
| Number of total control output | 1 point |
| Control output 1 | Relay output |
| Control output 2 | None |
| Indication method | 11-segment digital display and individual indicators |
| Setting Method | Digital setting using front panel keys |
| Power supply voltage | 100 to 240 VAC (50/60 Hz) |
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Power consumption | 4.9 VA max. (at 100 to 240 VAC) |
| Terminal | Screw |
Looking for a simple and effective temperature control solution? Check out the Omron 24VDC Temperature Controller E5DC-RX0ASM-015. It’s a compact unit, only 22.5 mm wide, with a user-friendly screw terminal block. This controller works with various inputs like thermocouples and infrared sensors. It offers a reliable relay output and operates on a power supply of 100 to 240 VAC. Additionally, it features RS-485 communication for easy data transfer. Get the best deals on this controller at IndMALL Automation.
