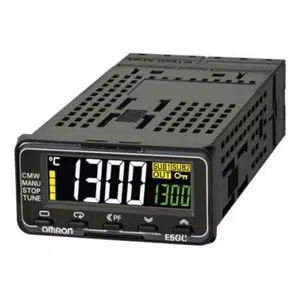

E5GC-CX2A6M-000: E5GC Digital Temperature Controller in Chennai
Technical Specifications for the Omron E5GC-CX2A6M-000 E5GC Digital Temperature Controller
- Shape: DIN 48 x 24
- Terminal type: Screw terminal block
- Control output 1: Linear current output
- Control output 2: None
- Number of total auxiliary output: 2 point
- Power supply voltage: 100 to 240 VAC (50/60 Hz)
- Control method: ON/OFF or 2-PID control
- Transfer output: 1 point (control output alternative)
Omron E5GC-CX2A6M-000 E5GC Digital Temperature Controller Technical Specifications:
| Size | DIN 48 x 24 |
| Control Method | ON/OFF control or 2-PID control (with auto-tuning) |
| Number of input points | 2 point |
| Temperature input type | Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 ℃, 60 to 120 ℃, 115 to 165 ℃, 140 to 260 ℃ |
| Analog input type | Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V |
| Number of total control output | 1 point |
| Control output 1 | Linear current output |
| Control output 2 | None |
| Linear current output | 1 point 4 to 20 mA DC / 0 to 20 mA DC, Load: 500 Ω max., Resolution: approx. 10000 |
| Number of total auxiliary output | 2 point |
| Transfer output | 1 point (control output alternative) |
| Indication method | 11-segment digital display and individual indicators |
| Setting Method | Digital setting using front panel keys |
| Power supply voltage | 100 to 240 VAC, 50/60 Hz |
| Operating voltage range | 85% to 110% of rated supply voltage |
| Power consumption | 5.9 VA max. (at 100 to 240 VAC) |
| Ambient temperature (Operating) | -10 to 55 ℃ (with no freezing or condensation) For a 3-year warranty with standard mounting: -10 to 50 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 25% to 85% |
| Storage temperature | -25 to 65°C (with no condensation or icing |
| Degree of protection | Front panel: IP66, Rear case: IP20, Terminal section: IP00 |
| Case color | Black |
| Terminal | Screw terminal block |
Are you in search of the Omron E5GC-CX2A6M-000 Digital Temperature Controller is an ideal choice. It has a DIN 48 x 24 shape, a screw terminal block, linear current output, and two auxiliary outputs. It operates on 100 to 240 VAC (50/60 Hz) and features ON/OFF or 2-PID control. Additionally, it includes one transfer output as an alternative to control output. For the best rates, visit IndMALL Automation in Chennai.
