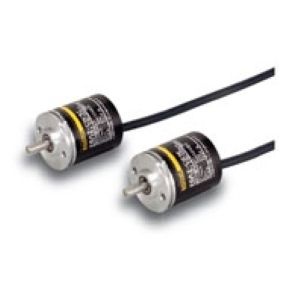

E6A2-CS3C 500P/R 0.5M: Omron Max-Res 500PPR Encoder
Technical Specifications of Omron Max-Res 500PPR Encoder E6A2-CS3C 500P/R 0.5M:
| Spec | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 500 P/R |
| Output phases | Phase A |
| Control output | NPN open collector |
| Connection method | Pre-wired models (Cable length: 0.5 m) |
Omron Max-Res 500PPR Encoder E6A2-CS3C 500P/R 0.5M Technical Specifications:
| Specification | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 500 P/R |
| Output phases | Phase A |
| Control output | NPN open collector |
| Connection method | Pre-wired models (Cable length: 0.5 m) |
| Diameter | 25 mm dia. |
| Power supply voltage | 5 to 12 VDC (-5% to +10%) Ripple (p-p) 5% max. |
| Current consumption | 20 mA max. |
| Inrush current | Approx. 9 A (0.3 ms) |
| Max. response frequency | 30 kHz |
| Ambient temperature | Operating: -10 to 55 ℃ (with no icing) Storage: -25 to 80 ℃ (with no icing) |
| Degree of protection | IEC: IP50 |
| Material | Case: Aluminum alloy |
| Weight | Package: Approx. 35 g |
| Accessories | Instruction manual, Couplings, Hex-head spanner |
Send Your Inquiry for Omron Max-Res 500PPR Encoder, E6A2-CS3C 500P/R 0.5M with cost-effective solutions. Essential Technical Specs of E6A2-CS3C 500P/R 0.5M cover Incremental Shaft model, 500 P/R, Phase A & NPN open collector. It also delivers 25 mm dia., 20 mA max. & 30 kHz. Capture the Best Deal with a Quote for your requirement of Omron Max-Res 500PPR Encoder. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
