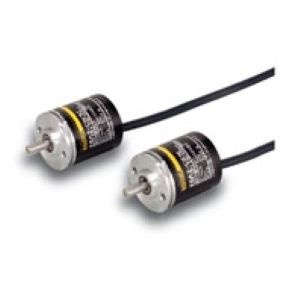

E6A2-CW3E 200P/R 2M: Omron Voltage Output 200 PPR
Technical Specifications of Omron Voltage Output 200 PPR E6A2-CW3E 200P/R 2M:
| Spec | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 200 P/R |
| Output phases | Phase A, B |
| Control output | Voltage output |
| Connection method | Pre-wired models (Cable length: 2 m) |
Omron Voltage Output 200 PPR E6A2-CW3E 200P/R 2M Technical Specifications:
| Specification | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 200 P/R |
| Output phases | Phase A, B |
| Control output | Voltage output |
| Connection method | Pre-wired models (Cable length: 2 m) |
| Diameter | 25 mm dia. |
| Power supply voltage | 5 to 12 VDC (-5% to +10%) Ripple (p-p) 5% max. |
| Current consumption | 30 mA max. |
| Inrush current | Approx. 9 A (0.3 ms) |
| Max. response frequency | 30 kHz |
| Ambient temperature | Operating: -10 to 55 ℃ (with no icing) Storage: -25 to 80 ℃ (with no icing) |
| Degree of protection | IEC: IP50 |
| Material | Case: Aluminum alloy |
| Weight | -- |
| Accessories | Instruction manual, Couplings, Hex-head spanner |
