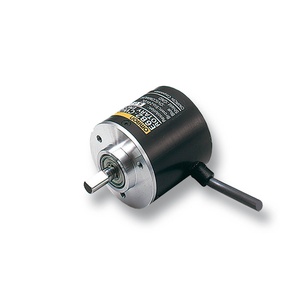

E6B2-CWZ1X 200P/R 0.5M: Omron 200 PPR Encoder
Technical Specifications of Omron 200 PPR Encoder E6B2-CWZ1X 200P/R 0.5M:
| Spec | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 200 P/R |
| Output phases | Phase A, -A, B, -B, Z and -Z |
| Control output | Line driver output |
| Connection method | Pre-wired models (Cable length: 0.5 m) |
Omron 200 PPR Encoder E6B2-CWZ1X 200P/R 0.5M Technical Specifications:
| Specification | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 200 P/R |
| Output phases | Phase A, -A, B, -B, Z and -Z |
| Control output | Line driver output |
| Connection method | Pre-wired models (Cable length: 0.5 m) |
| Diameter | 40 mm dia. |
| Power supply voltage | 5 VDC±5% ripple (p-p) 5% max. |
| Current consumption | 160 mA max. |
| Inrush current | Approx. 9 A (0.3 ms) |
| Max. response frequency | 100 kHz |
| Ambient temperature | Operating: -10 to 70 ℃ (with no icing) Storage: -25 to 85 ℃ (with no icing) |
| Degree of protection | IEC: IP50 |
| Material | Case: ABS |
| Weight | Package: Approx. 100 g |
| Accessories | Instruction manual, Couplings, Hex-head spanner |
Get A Quote for Omron 200 PPR Encoder, E6B2-CWZ1X 200P/R 0.5M at the best price. Here are the brief Technical Specifications of E6B2-CWZ1X 200P/R 0.5M are Incremental Shaft model, 200 P/R, Line driver output & Pre-wired models (Cable length: 0.5 m). And it offers 160 mA max. Approx. 9 A (0.3 ms) & 100 kHz. It's Time to get a Quote for your requirement of Omron 200 PPR Encoder. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
