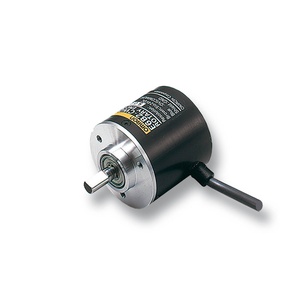

E6B2-CWZ1X 500P/R 0.5M: Omron Rotary Encoder 500 PPR
Technical Specifications of Omron Rotary Encoder 500 PPR E6B2-CWZ1X 500P/R 0.5M:
| Spec | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 500 P/R |
| Output phases | Phase A, -A, B, -B, Z and -Z |
| Control output | Line driver output |
| Connection method | Pre-wired models (Cable length: 0.5 m) |
Omron Rotary Encoder 500 PPR E6B2-CWZ1X 500P/R 0.5M Technical Specifications:
| Specification | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 500 P/R |
| Output phases | Phase A, -A, B, -B, Z and -Z |
| Control output | Line driver output |
| Connection method | Pre-wired models (Cable length: 0.5 m) |
| Diameter | 40 mm dia. |
| Power supply voltage | 5 VDC±5% ripple (p-p) 5% max. |
| Current consumption | 160 mA max. |
| Inrush current | Approx. 9 A (0.3 ms) |
| Max. response frequency | 100 kHz |
| Ambient temperature | Operating: -10 to 70 ℃ (with no icing) Storage: -25 to 85 ℃ (with no icing) |
| Degree of protection | IEC: IP50 |
| Material | Case: ABS |
| Weight | Package: Approx. 100 g |
| Accessories | Instruction manual, Couplings, Hex-head spanner |
The Omron E6B2-CWZ1X 500P/R 0.5M is a reliable incremental rotary encoder for industrial automation tasks. With a resolution of 500 pulses per revolution (PPR), it ensures precise motion control and accurate positioning. This compact encoder features a 40 mm diameter and a 0.5-meter pre-wired cable, making it easy to install in various systems. It operates on a 5 to 12 VDC power supply, consuming a maximum of 160 mA. The encoder supports Phase A, -A, B, -B, Z, and -Z outputs, along with a line driver configuration, for versatile performance in control setups.
With a maximum response frequency of 100 kHz, the Omron Rotary Encoder 500 PPR provides smooth and reliable operation for demanding applications. IndMALL Automation offers competitive prices and dependable service for the E6B2-CWZ1X 500P/R 0.5M, a trusted solution for precision-based systems.
