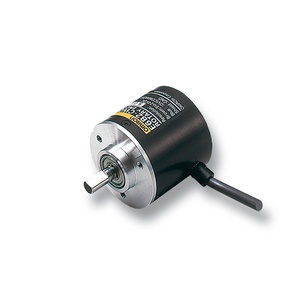

E6B2-CWZ3E 50P/R 0.5M: Omron Sturdy Encoder
Technical Specifications of Omron Sturdy Encoder E6B2-CWZ3E 50P/R 0.5M:
| Spec | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 50 P/R |
| Output phases | Phase A, B and Z |
| Control output | NPN voltage output |
| Connection method | Pre-wired models (Cable length: 0.5 m) |
Omron Sturdy Encoder E6B2-CWZ3E 50P/R 0.5M Technical Specifications:
| Specification | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 50 P/R |
| Output phases | Phase A, B and Z |
| Control output | NPN voltage output |
| Connection method | Pre-wired models (Cable length: 0.5 m) |
| Diameter | 40 mm dia. |
| Power supply voltage | 5 to 12 VDC (-5% to +10%) Ripple (p-p) 5% max. |
| Current consumption | 100 mA max. |
| Inrush current | Approx. 9 A (0.3 ms) |
| Max. response frequency | 100 kHz |
| Ambient temperature | Operating: -10 to 70 ℃ (with no icing) Storage: -25 to 85 ℃ (with no icing) |
| Degree of protection | IEC: IP50 |
| Material | Case: ABS |
| Weight | Package: Approx. 100 g |
| Accessories | Instruction manual, Couplings, Hex-head spanner |
Obtain a Quote for Omron Sturdy Encoder, E6B2-CWZ3E 50P/R 0.5M at attractive prices. Core System Specifications of E6B2-CWZ3E 50P/R 0.5M are Incremental Shaft model, 50 P/R, Phase A, B and Z & NPN voltage output. It functionality Includes 40 mm dia., 100 mA max. & 100 kHz. Elevate Your Project with a Quote for your requirement of Omron Sturdy Encoder. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
